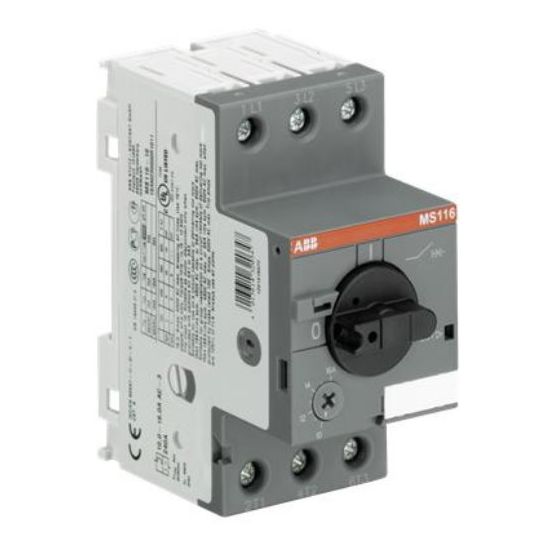

ABB Integrated Motor Starter Protector Rotary 3P 10A 6.3-10A 50 kA
Description
Integrated Motor Starter Protector Rotary, 3 Pole, 690 Volt AC, 10 Amp, 4 kW, 3 Phase, Setting Range: 6.3-10 Amp, Interrupt Capacity: 50 kA, 85.6 mm Length, 45 mm Width, 90 mm Height
Key Specifications
| Barcode (EAN-13) |
4013614320330
|
|---|---|
| SKU |
ABBMS116-10
|
| Brand |
ABB
|
| Product Type |
Motor Starters Integrated
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | MS116-10 |
| Current | 10 Amp |
| Height | 90 mm |
| Interrupt Capacity | 50 kA |
| Number Of Poles | 3 Pole |
| Phase | 3 Phase |
| Setting Range | 6.3-10 Amp |
| Voltage | 690 Volt AC |
| Wattage | 4 kW |
| Width | 45 mm |
