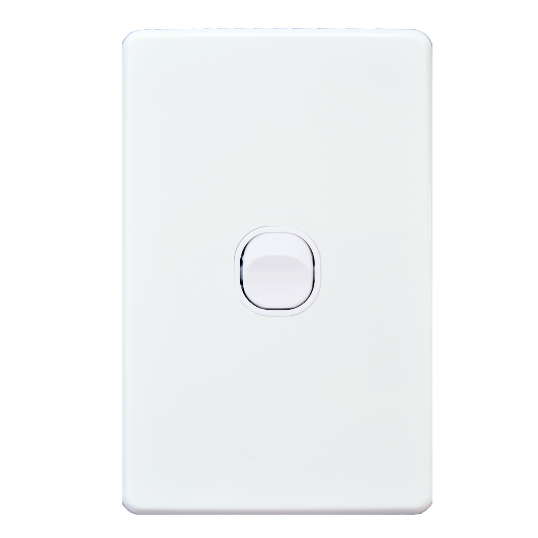

GSME Switch Cover Plate Flush Mount Standard 1 Gang 16A/10AX 250V Vertical White

$GSME\GSME_PUSWV1G.png$

Description

Switch Cover Plate, 250 Volt Switch, 16 Amp/10 Amp AX, 1 Gang, 2 Way, Screw Connection, Brass Tunnel Terminal, 4 x 1.5 sq-mm Terminal Capacity, Vertical Orientation, Wall Mounting, 84 mm Mounting Centres, UV Stabilised Polycarbonate, White, 116.5 mm Height, 75.5 mm Width, 25.8 mm Depth

Key Specifications

Barcode (EAN-13)	9349703004436
SKU	GSMPUSWV1G
Brand	GSME Trader
Range Name	Puma
Product Type	Covers & Grids

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Fits standard Australian wall boxes and mounting accessories that use 84 mm mounting centres Uses brass tunnel terminals that have the screws backed out for easier installation of cabling Slotted head screws for the terminals Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow Plates suit Trader Meerkat MESW mechanisms including TV and data and Clipsal 30 style mechanisms and accessories Standard colour is white
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	PUSWV1G
Colour	White
Connection Type	Screw
Current	16 Amp/10 Amp AX
Depth	25.8 mm
Height	116.5 mm
Material	UV Stabilised Polycarbonate
Mounting Centres	84 mm
Mounting Method	Wall
Number Of Gangs	1 Gang
Number Of Ways	2 Way
Orientation	Vertical
Terminal Type	Brass Tunnel
Terminal Capacity	4 x 1.5 sq-mm
Voltage	250 Volt Switch
Width	75.5 mm
