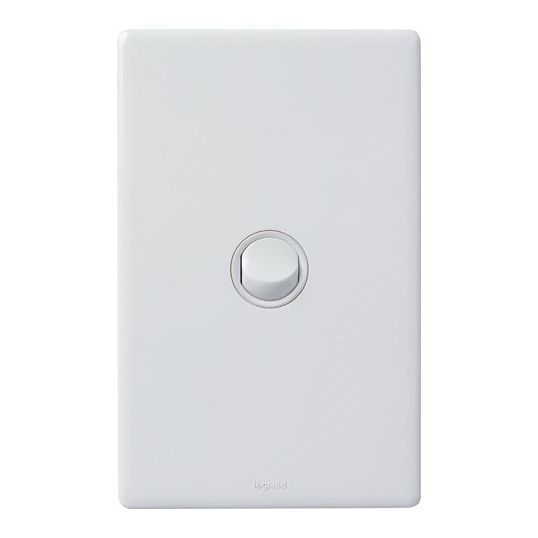

Legrand Switch Flush Mount Rocker Standard 1 Gang 16AX 230/240V 1 Pole 2 Way Vertical White
Description
The Excel Life™ Dedicated Plate Series switches are tough and reliable for both residential and commercial environments. Each dedicated plate includes rocker switches specifically crafted to withstand wear and tear, featuring a 16A/16AX and M100 rating to maximize longevity and efficiency.
Key Specifications
| Barcode (EAN-13) |
9321001401834
|
|---|---|
| SKU |
LEGED770/1WE
|
| Brand |
Legrand
|
| Range Name |
Excel Life
|
| Product Type |
Switches Standard
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | ED770/1WE |
| Actuator Type | Rocker Switch/Button |
| Colour | White |
| Configuration | SPDT |
| Connection Type | Screw |
| Current | 16 Amp/16 AX |
| Depth | 15 mm |
| Finish | Gloss |
| Height | 77 mm |
| IP Rating | IP66 |
| Material | Plastic |
| Mounting Centres | 84 mm |
| Mounting Method | Flush |
| Number Of Gangs | 1 Gang |
| Number Of Poles | 1 Pole |
| Number Of Ways | 2 |
| Orientation | Vertical |
| Width | 121 mm |
