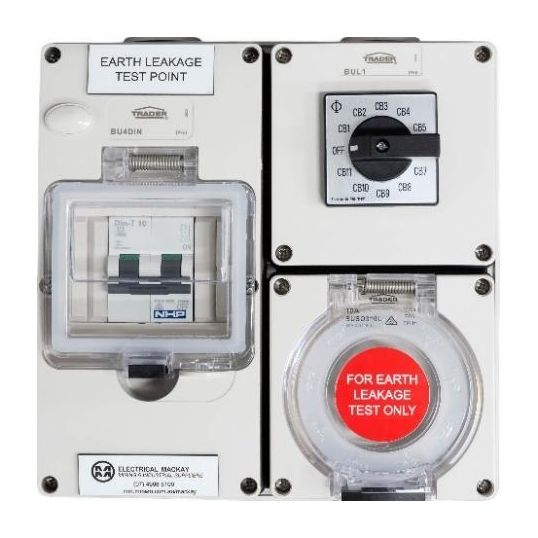

IP66 EARTH LEAKAGE TEST KIT OFF PLUS 6 WAY 1P K&N SWITCH
Description
ACSELT06-1P-K&N. Off plus 6 way, Active only switching PREWIRED EARTH LEAKAGE TEST KITS -Retrofit kits for easy installation to existing load centres and Distribution boards. -IP66 Assembly and Kraus & Naimer Selector switch, NHP 10kA circuit protection within pad lockable cover, Flexicon PVC conduit fitted to bottom with glands, -10A GPO with round pin earth -Wire numbers and sleeves for easy identification -Can be supplied with active only or active and neutral switching -Wall mount brackets fitted for easy mounting -Bezel labelling OFF,1,2,3,4,5,6 etc -Available in 6 or 11 way -Prewired in 2.5mm tinned flexible cables -RPEQ certified drawings can be provided at time of order Optional -Custom bezel numbering -Custom wire numbering -Custom wire colours for 3 phase kits -Optional cable exits, ie top, left or right -Can be custom made with additional circuits if required
Key Specifications
| SKU |
ACSELT06-1P-K&N
|
|---|---|
| Brand |
MM MACKAY
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | ELT06-1P-K&N |
| Product Type | simple |
