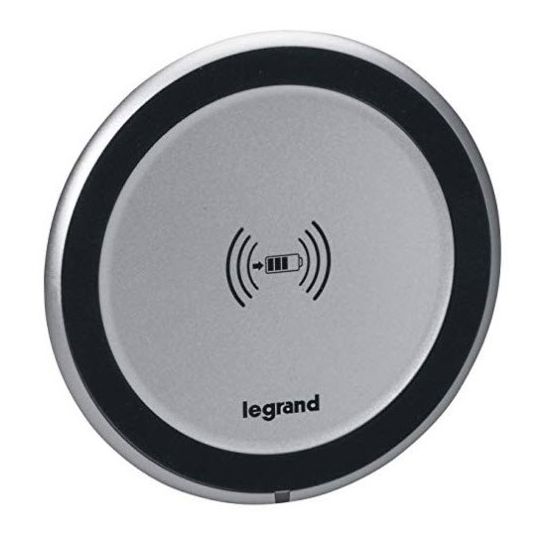

Legrand Wireless Charging Station Qi Certified For Desk or Furniture 1000mA 80mm Silver
Description
Wireless Charging Station, System Type Qi Type, Input Voltage 110-230 Volt, Output Voltage 5 Volt, Input 150 mA, Output 1000 mA, Power Rating Standby <0.07 Watt, Frequency 50-60 Hz, IP43/IP44, Material ABS, Silver Finish, Temperature 0 to 45 deg C, Dimensions 185mm Width x 230mm Height x 55mm Depth, 80mm cut-out
Key Specifications
| SKU |
LEG077580
|
|---|---|
| Brand |
Legrand
|
| Product Type |
Wireless Charging
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 32151900 |
| UOM | EA |
| Vendor Product | 077580 |
| Dimensions | 185 mm Width x 230 mm Height x 55 mm Depth |
| Current | Input 150 mA/Output 1000 mA |
| Input Voltage | Input 110-230 Volt |
| Frequency | 50/60 Hz |
| IP Rating | IP43/44 |
| Material | ABS Plastic |
| Output Voltage | Output 5 Volt |
| Please Note | 80mm cut-out |
| Power Rating | Standby <0.07 Watt |
| System Type | Qi Type |
| Temperature | 0 to 45 deg C |
