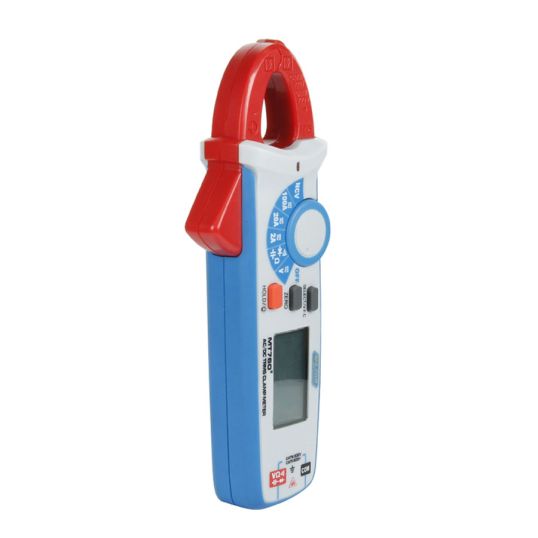

Major Tech Clamp Meter 100A AC/DC 17mm

chevron-left

Description

chevron-down
Clamp Meter, DC: 200 mV - 600 Volt, AC: 2-600 Volt, DC: 2-100 Amp, AC: 2-100 Amp, 200 Ohm - 20 MOhm Resistance, 2 nF - 20 mF, 2 x AAA Battery, 2000 Count Backlight LCD Display, 17mm Jaw, Over Moulded Enclosure, 175mm x 60mm x 33.5mm, IEC 61010-1 CAT II 600V

Key Specifications

chevron-down
Barcode (EAN-13)
6008229018435
SKU
MAJMT760
Brand
Major Tech

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Current measurement from 1mA
  • Measures AC and DC current up to 100A
  • 2000 count backlit LCD display
  • Measurement of DC voltage and AC voltage up to 600V
  • VFC - Variable Frequency Drive voltage value
  • Microprocessor zero adjustment
  • NCV - Non-contact voltage detector
  • Continuity buzzer and diode test
  • Data Hold function
  • Auto power off
Standard Pack Size 1
UNSPSC Class 41113600
UOM EA
Vendor Product MT760
Current 2-100 Amp
Dimensions 175mm x 60mm x 33.5mm
Display Type 2000 Count Backlight LCD
Power Supply 2 x AAA
Product Type Clamp Meter
Resistance 200 Ohm/20 MOhm
Voltage 200 mV/600 Volt DC/2-600 Volt AC
