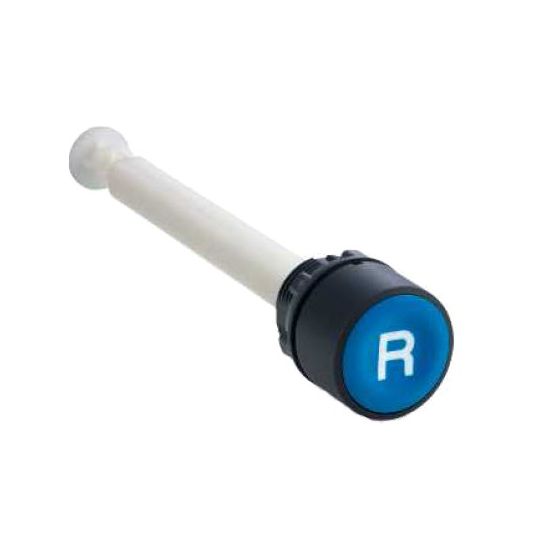

Schneider Manual Overload Reset Push-button Complete Blue 10mm Travel For 17-120mm Actuation Distance
Description
Pushbutton Complete Manual Overload Reset, 22 mm, For Use With 17-120 mm Actuation Distance, Flush Mounting, IP66, NEMA 4X, Blue, -40 to 70 deg C, 29 mm Height, 29 mm Width, 120 mm Depth
Key Specifications
| Barcode (EAN-13) |
3389110102475
|
|---|---|
| SKU |
TEEXB5-AA86102
|
| Brand |
Schneider
|
| Product Type |
Operator Accessories
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | XB5AA86102 |
| Colour | Blue |
| Depth | 120 mm |
| For Use With | 17-120 mm Actuation Distance |
| Height | 29 mm |
| IP Rating | IP66 |
| Mounting Method | Flush |
| NEMA Rating | NEMA 4X |
| Size | 22 mm |
| Temperature | -40 to 70 deg C |
| Width | 29 mm |
