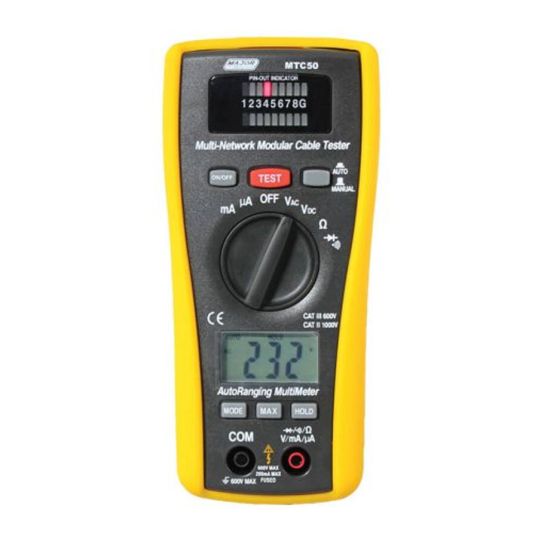

Major Tech 2-IN-1 LAN Cable Tester & Digital Multimeter

Description

LAN Cable Tester and Digital Multimeter, DC: 200 mV - 600 Volt, AC: 200 mV - 600 Volt, DC: 200 uA - 200 mA, AC: 200 uA - 200 mA, 200 Ohm - 20 MOhm Resistance, 2 x AAA and 9 Volt Battery, 2000 Count LED Display, Rubber Holster Enclosure, 162mm x 74mm x 43mm, IEC 61010-1 CAT III 600V

Key Specifications

Barcode (EAN-13)	6008229023057
SKU	MAJMTC50
Brand	Major Tech

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	2-in-1 LAN tester and digital multimeter LED displays the actual pin configuration and tests the correct pin configuration of 100Base-T, 10Base-T, 10Base-2 Thin Ethernet cable, RJ45/RJ11 modular cables 356A, TIA-568A/568B and Token Ring cable etc With remote kit it can remotely test cables up to 300m away either on wall plate or patch panel Can test the grounding Provides easy to read continuity and fault status display Measures AC voltage and DC voltage up to 600V, AC and DC current up to 200mA Locked status wiring function LAN testing Tests CAT 5 installations
Standard Pack Size	1
UNSPSC Class	41113600
UOM	EA
Vendor Product	MTC50
Dimensions	162mm x 74mm x 43mm
Display Type	2000 Count LED
Power Supply	2 x AAA/9 Volt
Product Type	simple
Resistance	200 Ohm/20 MOhm
Voltage	200 mV 600 Volt
Current	200 uA-200 mA
