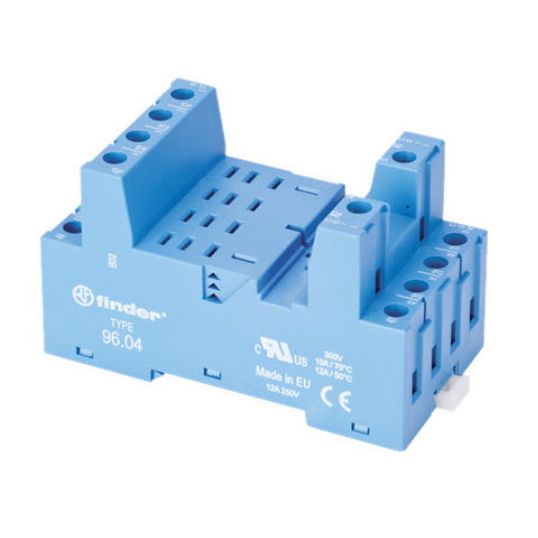

Finder Relay Base 14 Pin Flat Plug-In Mount

Description

Relay Mount Base, 250-400 Volt AC, 12 Amp, 14 Pin Flat, Screw Terminal, Plug-In Mounting, For Use With 5634/9901 LED Relay Box Clamp, IP20, -40 to 70 deg C, 82.5 mm Height, 43.4 mm Width, 48.2 mm Depth, With Metal Clip

Key Specifications

Barcode (EAN-13)	8012823334158
SKU	FID96.04
Brand	Finder
Range Name	Series 96

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Complete range from PCB to power relays to cover all of your switching requirements Compact construction allowing for most efficient use of space
Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	9604
Current	12 Amp
Depth	48.2 mm
For Use With	5634/9901 LED Relay Box Clamp
Height	82.5 mm
IP Rating	IP20
Pin Configuration	14 Pin Flat
Mounting Method	Plug-In
Please Note	With Metal Clip
Product Type	simple
Terminal Connection	Screw
Voltage	250-400 Volt AC
Temperature	-40 to 70 deg C
Width	43.4 mm
