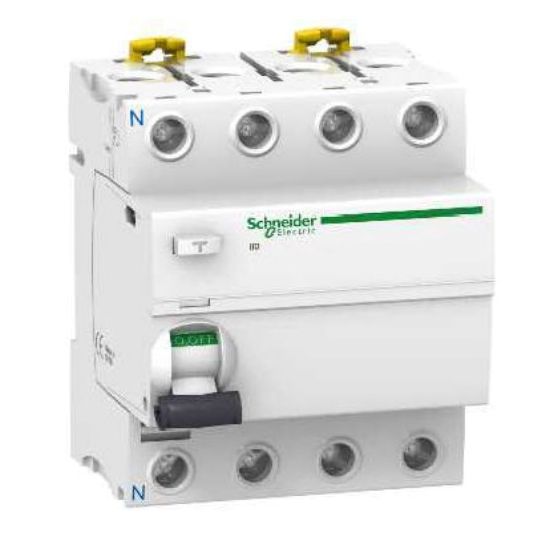

Schneider Safety Switch RCCB Instantaneous 4Pole 63A 380-415VAC 10kA 300mA 4Module 72mm DIN Rail Clip-on Mount

chevron-left

Description

chevron-down
Safety Switch RCCB Instantaneous Type, 380-415 Volt AC, 63 Amp, 50/60 Hz, 10 kA Interrupt Capacity, 300 mA Trip Sensitivity, 4 Modules, 72mm Module Width, 4 Poles, Single Terminal, IP20 Conforming to IEC 60529, IP40 Conforming to IEC 60529, DIN Rail, Clip-on, 15000 Cycles, 20000 Cycles Mechanical Durability, 1-25 mm Flexible, 1-35 mm Rigid Conductor, 3.5 N/m Top/Bottom Tightening Torque, White,-25 to 60 deg C, 91mm Height x 72mm Width x 73.5mm Depth

Key Specifications

chevron-down
Barcode (EAN-13)
3606480374586
SKU
SHNA9R25463
Brand
Schneider
Range Name
Acti 9 i1D
Product Type
Safety Switches RCCB

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Standard Pack Size 1
UNSPSC Class 39121600
UOM EA
Vendor Product A9R25463
Conductor Size 1-25 sq-mm Flexible - 1-35 sq-mm Rigid
Current 63 Amp
Depth 73.5 mm
Height 91 mm
Electrical Life 15000 Cycles
Frequency 50/60 Hz
Interrupt Capacity 10 kA
IP Rating IP20/40
Mechanical Durability 20000 Cycles
Modules 4 Module 72mm
Mounting Method DIN Rail/Clip-on
Number Of Poles 4 Pole
Terminal Type Single
Tightening Torque 3.5 Nm Top/Bottom
Temperature -25 to 60 deg C
Width 72 mm
Trip Sensitivity 300 mA
Voltage 380-415 Volt
