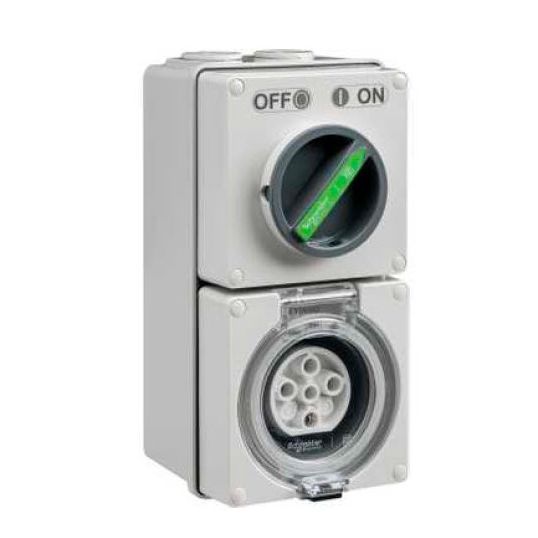

Schneider Switch Socket Outlet Surface Mounting Weatherproof 3Ph 20A 500V 5 Pin Round Grey IP66
Description
Switched Socket Outlet Weatherproof, 500 Volt, 20 Amp AC1, 50 Hz, 3 Phase Phase, 3 Pole, 5 Pin Round (3 + Neutral + Earth), Screw Connection, 2xM25/1xM32 Conduit Entry, 1-16 mm Terminal Capacity, Surface Mounting, IP66, Polycarbonate, Grey, -25 to 75 deg C, 203 mm Height, 101 mm Width, 101 mm Depth
Key Specifications
| Barcode (EAN-13) |
9311554782801
|
|---|---|
| SKU |
SHNEY56C520
|
| Brand |
Schneider
|
| Range Name |
Easy56
|
| Product Type |
Switch Sockets
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | EY56C520 |
| Colour | Grey |
| Conduit Entry | 2xM25/1xM32 |
| Connection Type | Screw |
| Depth | 101 mm |
| Frequency | 50 Hz |
| Height | 203 mm |
| IP Rating | IP66 |
| Material | Polycarbonate |
| Mounting Method | Surface |
| Number Of Poles | 3 Pole |
| Phase | 3 Phase |
| Pin Configuration | 5 Pin Round (3 + Neutral + Earth) |
| Temperature | -25 to 75 deg C |
| Terminal Capacity | 1-16 mm |
| Voltage | 500 Volt |
| Width | 101 mm |
