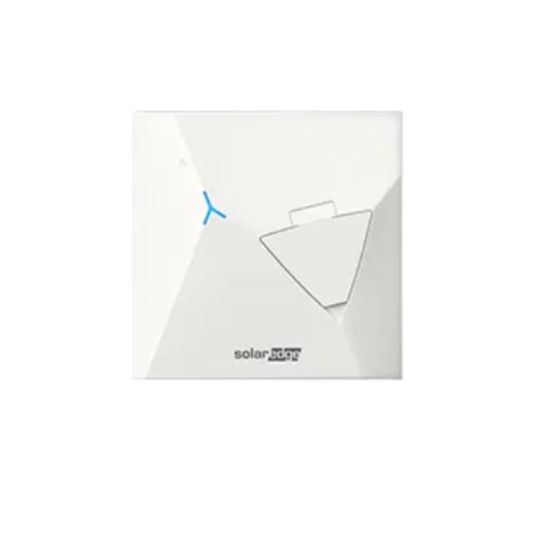

Solar Edge One Electric Vehicle Charger 22kW 230/400V 6-32A 1/3Ph Type 2 Socket/Tethered IP54 Ca 32A 50Hz 2000m RJ45

$Solar_Edge\Solar_Edge_SEEVN22SE0-01.JPG$

Description

The consumption-self solar their optimize customers helps It .sites commercial and residential .apps SolarEdge by management energy intelligent through costs electricity reduce and Charger EV ONE SolarEdge the ,reliability term-long and installation flexible for Designed and ,outdoors and indoors for compatible ,installations phase three and single both supports .capability lock cable integrated with configurations tethered or socket both for suitable i

Key Specifications

SKU	SLRSE-EVN22SE0-01
Brand	Solar Edge

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Use excess PV with smart scheduling for advanced charging plans during low electricity prices, import limitation for peak shaving, and surge protection Suitable for single and three phase installations, both indoor and outdoor Flexible charger that uses a socket or tethered options by permanent cable lock Supports charging authentication using the built-in RFID reader, mobile app, or simple plug-and-play Optional MID meter and ISO 15118 Plug & Charge Sleek, compact design with an installation-friendly, snap-on mounting for rapid setup
Standard Pack Size	1
UNSPSC Class	25175000
UOM	EA
Vendor Product	SE-EVN22SE0-01
Certifications	CE / EN IEC EV
Communication Protocol	OCPP 1.6J
Communication Port	RJ45
Connector Type	Type 2 Socket / Tethered
Depth	130 mm
IK Rating	IK08
Input Current	6-32 Amp
Input Frequency	50 Hz
Height	235 mm
IP Rating	IP54
Max. Operating Altitude	2000 mtr
Item Weight	1.8 kg
Operating Temperature	-30 to 50 deg C
Output Current	32 Amp
Power Output	22 kW
Please Note	Ca
Relative Humidity	5-80%
Width	230 mm
Storage Temperature	-40 to 70 deg C
Standards	IEC 61851-1 / EN 62196-1
Wireless Technology	Wi-Fi / RFID / Ethernet
