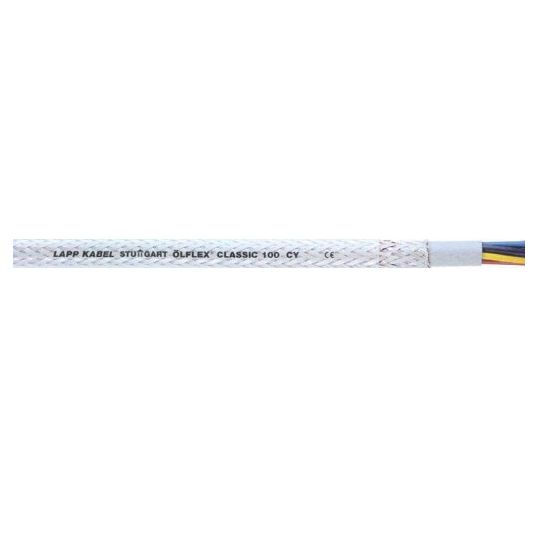

Lapp Kabel Olflex Classic 100 CY Power & Control Cable 2 Core + Earth 1.5mm 450/750V Copper PVC/PVC Transparent
Description
Key Specifications
SKU |
LAP0035458
|
---|---|
Brand |
Lapp Kabel
|
Range Name |
Olflex Classic 100
|
Product Type |
Flexible Control Cable
|
Technical Specifications
Additional Information
Standard Pack Size | 1 |
---|---|
UNSPSC Class | 26121600 |
UOM | MTR |
Vendor Product | 0035458 |
Bend Radius | Static 61.8 mm/Flexible 206 mm |
Conductor Resistance | 13.3 Ohm/km |
Conductor Size | 1.5 mm |
Conductor Type | Bare Copper |
Insulation Material | PVC |
Number of Cores | 2 Core + Earth |
Overall Diameter | 10.3 mm |
Screen Material | Tinned Copper Braid |
Sheath Colour | Clear |
Sheath Material | PVC |
Standards | IEC 60228 Class 5 EN 50525-2-51 |
Temperature | Static -40 to 80 deg C Flexible -5 to 70 deg C |
Voltage | 450-750 Volt |
