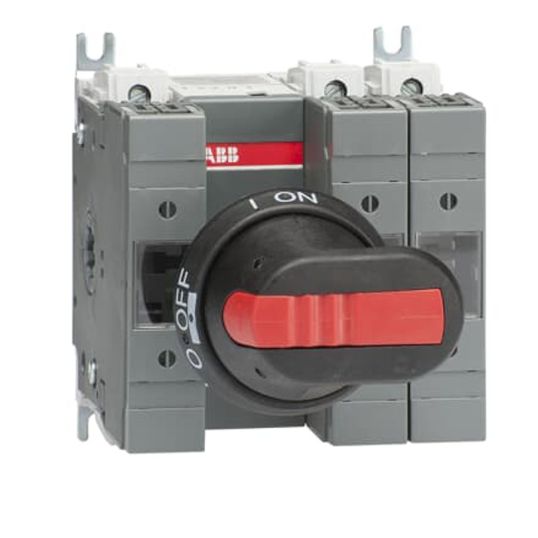

ABB Fuse Switch Disconnector 690VAC 63A 3 Pole IP65 For A2-A3
Loading...
Description
Fuse Switch Disconnector, 690 Volt AC, 63 Amp @ 500 Volt AC21 Rating, 63 Amp @ 690 Volt AC23 Rating, 3 Pole, For Size A2-A3 Fuse Link, Base Mount, IP65, 40 deg C, 125 mm Height, 112 mm Width, 109 mm Depth, For Operator/Handle + Shaft
Key Specifications
| SKU |
ABBOS63GB12P
|
|---|---|
| Brand |
ABB
|
| Product Type |
Isolating Switches
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | OS63GB12P |
| AC21 Rating | 63 Amp @ 500 Volt |
| Depth | 109 mm |
| For Fuse Link Size | A2-A3 |
| AC23 Rating | 63 Amp @ 690 Volt |
| Height | 125 mm |
| IP Rating | IP65 |
| Mounting Method | Base |
| Number Of Poles | 3 Pole |
| Please Note | For Operator / Handle + Shaft |
| Temperature | 40 deg C |
| Voltage | 690 Volt AC |
| Width | 112 mm |
