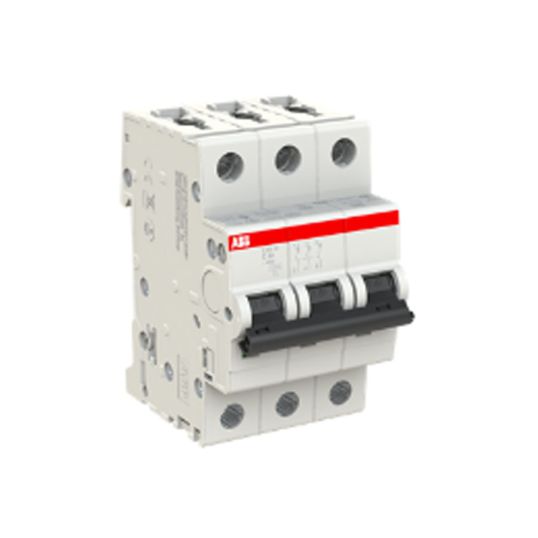

ABB S200M Series Miniature Circuit Breaker 3 Pole 10kA 400VAC 50A C Curve

$ABB\ABB_S203MC50.jpg$

Description

Miniature Circuit Breaker, 400 Volt AC, 50 Amp, 50/60 Hz, 10 kA Interrupt Capacity, 3, C Curve, IP20, Flexible: Top/Bottom-25/25mm, Solid/Stranded: Top/Bottom-35/35mm, DIN Rail Mounting, Insulation Group II, RAL 7035 Housing, 88mm Height, 52.5mm Width, 69mm Depth

Key Specifications

SKU	ABBS203MC50
Brand	ABB
Product Type	Mini Circuit Breakers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Protection against short circuit and thermal overload Twin terminal for separate feeding of busbar and conductor Contact Postion Indication Captive screws Finger safety with IP20 terminals
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	S203MC50
Cable Size	Flexible: Top/Bottom 25-5mm / Stranded: Top/Bottom 35-35mm
Current	50 Amp
Depth	69 mm
Frequency	50/60 Hz
Height	88 mm
Interrupt Capacity	10 kA
IP Rating	IP20
Mounting Method	DIN Rail
Number Of Poles	3 Pole
Voltage	400 Volt
Width	52.5 mm
