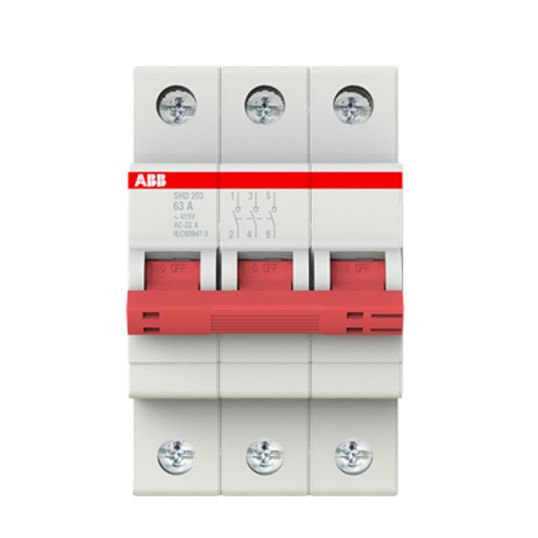

ABB Disconnector Switch 3P 63A 400-415VAC DIN Rail Mount

$ABB\ABB_SHD20363.jpg$

Description

Disconnector Switch, 400-415 Volt AC, 63 Amp, 50/60 Hz, 15.08 Watt, 3 Pole, IP20, DIN Rail Mounting, 0.75-16 sq-mm Flexible/0.75-25 sq-mm Rigid/0.75-25 sq-mm Stranded Conductor, Screw Connection, Light Gray Body/Red Toggle, -25 to 55 deg C, 85 mm Height x 52.5 mm Width x 69 mm Depth

Key Specifications

SKU	ABBSHD20363
Brand	ABB

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Isolating characteristics acc. to IEC/EN 60947-3 Consistent design to all other System pro M DIN rail products Cross wiring with MCBs or RCDs using busbars PS Durable device identification due to laser labeling Locking device as accessory for unauthorized ON/OFF switching
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	SHD20363
Colour	Light Gray Body / Red Toggle
Connection Type	Screw
Conductor Size	0.75-16 sq-mm Flexible/0.75-25 sq-mm Rigid/0.75-25 sq-mm Stranded
Current	63 Amp
Dimensions	85 mm Height x 52.5 mm Width x 69 mm Depth
Number Of Poles	3 Pole
IP Rating	IP20
Mounting Method	DIN Rail
Frequency	50/60 Hz
Voltage	400-415 Volt AC
Temperature	-25 to 55 deg C
