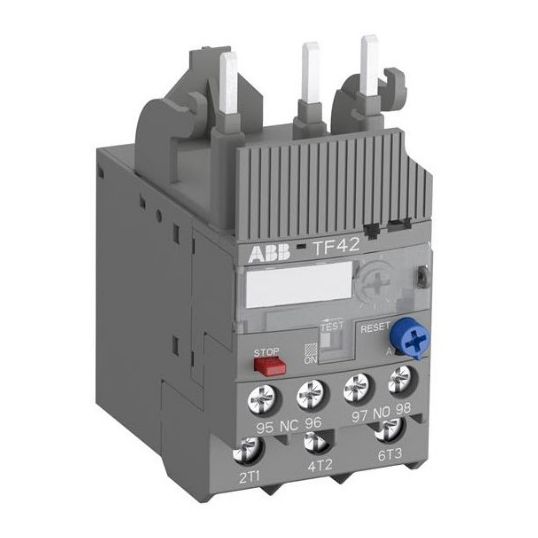

ABB Thermal Overload Relay 3 Pole 7.6-10A 690V 1NO-1NC Class 10 Auto/Man IP20 Screw

Description

Thermal Overload Relay, 690 Volt AC Operational Voltage, Setting Range From (Amp): 7.6, Setting Range To (Amp): 10.0, 50/60 Hz, Class 10, Automatic/Manual Control, 1 Normally Opened/1 Normally Closed Configuration, 3 Pole, 1.5-2.5 Nm Tightening Torque, Direct Attachment Mounting, Screw Terminal, For Use With AF09 to AF38 Contactors, IP20, -25 to 60 deg C, 88.3 mm Height, 45 mm Width, 70.5 mm Depth

Key Specifications

Barcode (EAN-13)	4013614398124
SKU	ABBTF42-10
Brand	ABB
Product Type	Contactor Overloads

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Thermal overload relay is an economic electromechanical protection device for the main circuit Trip-free mechanism, STOP function and a trip indication The overload relays are connected directly to the block contactors
Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	TF42-10
Contact Configuration	1 Normally Opened/1 Normally Closed
Control Type	Automatic/Manual
Depth	70.5 mm
Operational Voltage	690 Volt AC
Frequency	50/60 Hz
For Use With	AF09 to AF38 Contactors
IP Rating	IP20
Mounting Method	Direct Attachment
Height	88.3 mm
Number Of Poles	3 Pole
Setting Range From (Amp)	7.6
Setting Range To (Amp)	10.0
Temperature	-25 to 60 deg C
Terminal Connection	Screw
Trip Characteristic	Class 10
Tightening Torque	1.5-2.5 Nm
Width	45 mm
