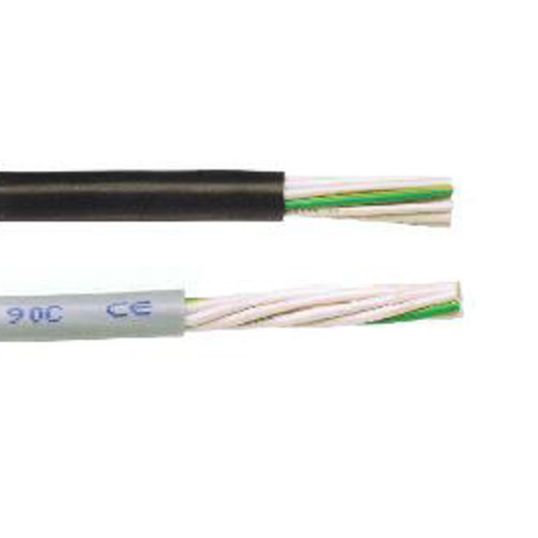

Aflex Flexible Control Cable Unscreened 2 Core & Earth 0.5mm 0.3/0.5kV Stranded Annealed Copper PVC/NBR Black
Description
Flexible Control Cable, Unscreened, 2 Core & Earth, 0.5 mm, Stranded Annealed Copper, 0.3/0.5 kV, 5.1 mm Overall Diameter, 76.5 mm Bend Radius, PVC Insulation, NBR Sheath, White with Black Numbered Green/Yellow Cores, Black Sheath, Static - -30 to 80 deg C Flexible - -5 to 70 deg C, VDE 0295 Class 5, VDE 0812, IEC 332-1
Key Specifications
| SKU |
AFL77720305
|
|---|---|
| Brand |
Aflex
|
| Product Type |
Flexible Control Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 77720305 |
| Bend Radius | 76.5 mm |
| Core Colours | Green/Yellow/White/Black Nurmerals |
| Conductor Size | 0.5 mm |
| Conductor Type | Stranded Annealed Copper |
| Insulation Material | PVC |
| Number of Cores | 2 Core + Earth |
| Overall Diameter | 5.1 mm |
| Sheath Colour | Black |
| Sheath Material | Nitril Modified PVC (NBR) |
| Standards | VDE 0295 Class 5 VDE 0812 IEC 332-1 |
| Temperature | Static: -30 to 80 deg C Flexible: -5 to 70 deg C |
| Voltage | 0.3-0.5 kV |
