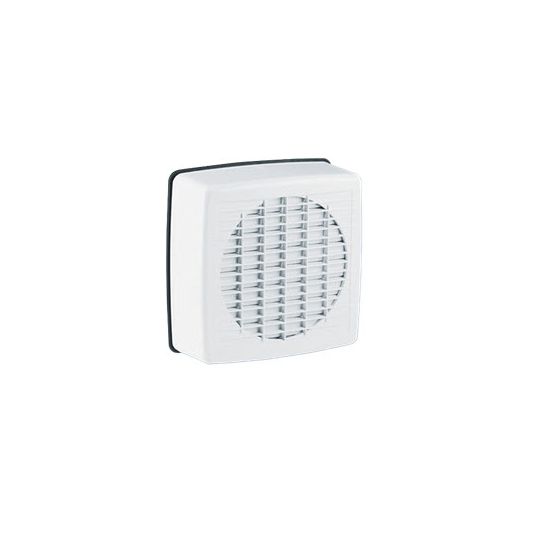

Airflow Exhaust Fan 150mm 230-240 Volt AC 0.27 Amp 360 cu-m/hr 49dBA White

Description

Exhaust Fan, Fan Size: 150mm, 230-240 Volt AC, 0.27 Amp, Motor Wattage: 45 Watt, Phase: 1 Phase, Air Flow Rate (cu-m/hr): 360 cu-m/hr, Air Flow Rate (l/sec): 100 l/sec, Duct Size: 172mm, IPX4, Fan Noise: 49 dBA, Window Mounting, Speed Setting: 1 Speed, Motor Type: Sleeve Bearing, Plastic, White

Key Specifications

Barcode (EAN-13)	9311554561253
SKU	AIR7005A
Brand	Airflow
Range Name	MaxAir
Product Type	Exhaust fans

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	BCA axial fan High performance air movement Low noise level One person installation 245 x 245mm overall intake 4-32mm window depth 172mm duct diameter 213mm hole diameter Automatic shutter operation 1 speed
Standard Pack Size	1
UNSPSC Class	40101600
UOM	EA
Vendor Product	7005A-NLA
Air Flow Cubic Meters per Hour	360 cu-m/hr
Air Flow Litres per Second	100 l/sec
Colour	White
Current	0.27 Amp
Duct Size	172mm
Fan Size	150 mm
IP Rating	IPX4
Material	Plastic
Motor Type	Sleeve Bearing
Mounting Method	Window
Noise Level	49 dBA
Phase	1 Phase
Speed Setting	1 Speed
Voltage	230-240 Volt
Wattage	45 Watt
