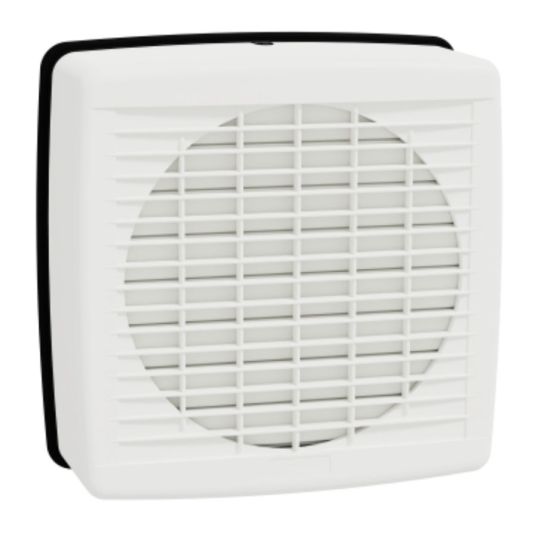

Airflow MaxAir Window Exhaust Fan 200mm Auto Louvre White

$Airflow\Airflow_7105AN.JPG$

Description

Airflow window exhaust fan by Schneider Electric, extracts large volumes of air. It is provided with shutters that close automatically when not in use. Its Ue rated operational voltage is 230VAC at 50 Hz. The load handling of exhaust is 38W. This device is designed to be window mounting. The dimensions of the product are (W) 271mm x (H) 271mm. It is made of ABS (acrylonitrile butadiene-styrene). The color of the product is white. It reaches IPx4 degree of protection. Airflow products are economical and are having efficient air movement solutions. High air flow for everyday needs.

Key Specifications

Barcode (EAN-13)	3606486373972
SKU	AIR7105AN
Brand	Airflow
Range Name	MaxAir
Product Type	Exhaust fans

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	A Window exhaust fan, which extracts large volumes of air Shutters that close automatically when not in use Operated via wall switch (not included) Reaches IPx4 degree of protection 3 years Warranty
Standard Pack Size	1
UNSPSC Class	40101600
UOM	EA
Vendor Product	7105AN
Air Flow Cubic Meters per Hour	600 cu-m/hr
Colour	White
Current	0.18 Amp
Fan Size	200 mm
Cut-Out Size	230 mm
Frequency	50 Hz
IP Rating	IPX4
Material	ABS
Motor Type	Ball Bearing
Mounting Method	Window
Noise Level	50 dB
Voltage	230 Volt
Wattage	38 Watt
Width	271 mm
