Airflow Exhaust Fan Square 240 Volt AC 0.13 Amp 200 cu-m/hr 46dBA White Electric w/Flex & Plug

chevron-left

Description

chevron-down

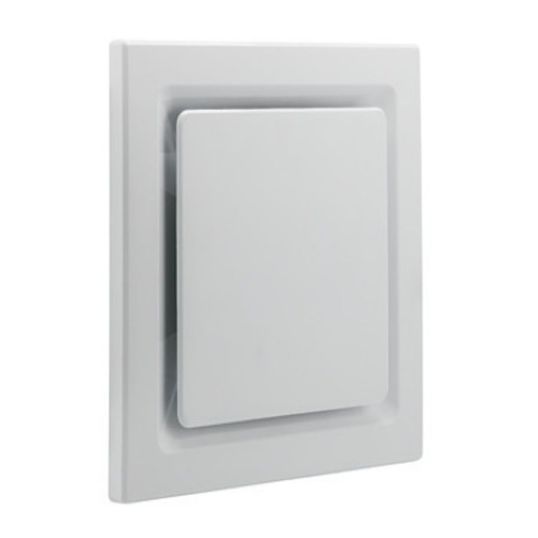

The Clipsal square inlet grille has a contemporary design which is easy to align with side walls. The inlet grille is mounted to a round fan, so it can be rotated to ensure it aligns with the walls of the room. It is designed for use with the Clipsal CEF40 and CEF30 Mounted Ducted Exhaust Fans.

Key Specifications

chevron-down
Barcode (EAN-13)
9311554772666
SKU
AIRCEF30WE
Brand
Airflow

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Centrifugal fan for quiet operation
  • 200 cu-m/hr air movement
  • 245mm square cutout
  • Suitable for 100mm ducting
  • BCA compliant with backdraft shutter
  • Easy fitting grille
  • Subtle, modern styling
  • Suitable for new build and retrofit projects
Standard Pack Size 1
UNSPSC Class 40101600
UOM EA
Vendor Product CEF30-WE
Air Flow Cubic Meters per Hour 200 cu-m/hr
Air Flow Litres per Second 56 l/sec
Colour White
Current 0.13 Amp
Duct Size 100 mm
IP Rating IPX4
Mounting Method Ceiling
Noise Level 46 dBA
Shape Square
Voltage 240 Volt
Wattage 30 Watt
