Allen-Bradley Switch mode Power Supply 1Ph In 85-264V Out 24-28VDC 120W 5A DIN 35 Rail Mount

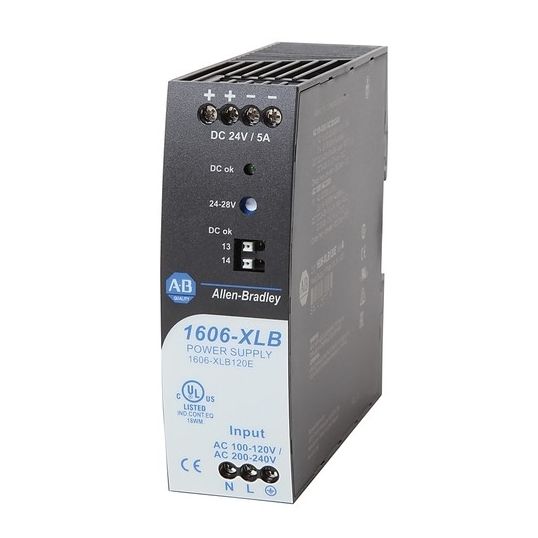

$Allen_Bradley\Allen-Bradley_1606-XLB120E.jpg$

Description

Switch Mode Power Supply, In: 85-264 Volt AC, Out: 24-28 Volt DC, 5 Amp, 120 Watt, 50/60 Hz, 1 Phase, Power Factor: 0.54, Mounting Method: DIN 35 Rail, Display: LED, IP20, Efficiency: 90%, -25 to 70 deg C, 124 mm Height, 39 mm Width, 124 mm Depth

Key Specifications

Barcode (EAN-13)	00889508133898
SKU	ALB1606XLB120E
Brand	Allen-Bradley
Product Type	Power Supplies

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Efficient power supplies which minimise heat output and reduce associated running costs Redundancy module options allow for backup power in critical applications The compact footprint maximises usable space with the panel
Standard Pack Size	1
UNSPSC Class	39121000
UOM	EA
Vendor Product	1606XLB120E
Current	5 Amp
Depth	124 mm
Display	LED
Frequency	50/60 Hz
Efficiency	90%
Height	124 mm
Input Voltage	85-264 Volt AC
IP Rating	IP20
Output Rating	120 Watt
Mounting Method	DIN Rail
Power Factor	0.54
Output Voltage	24-28 Volt DC
Phase	1 Phase
Width	39 mm
Temperature	-25 to 70 deg C
