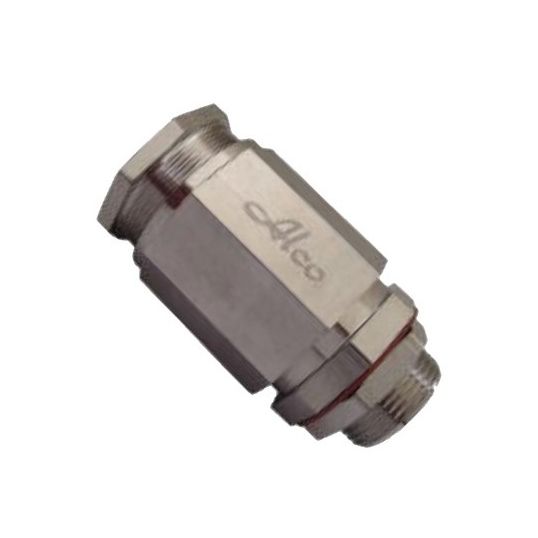

Alco Metal Cable Gland Armoured General Purpose 26-33.5mm M32 IP66/68

Description

Cable Gland Weatherproof Armoured General Purpose, M32, 14 mm Thread Length, 26 mm Min. Sheath OD, 33.5 mm Max. Sheath OD, 26 mm Max. Bedding OD, 1.25 mm Min. Armour Wire, 1.6 mm Max. Armour Wire, 47.5 mm Width Across Flats, 51 mm Width Across Corners, 32 Nm Torque Rating, IP66/68, Brass Body, Thermoplastic Elastomer Seal, Nickel Plated, -20 to 80 deg C, 17 mm Overall Length

Key Specifications

Barcode (EAN-13)	9314520035123
SKU	ALCAW32
Brand	Alco
Range Name	Type AW

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Weatherproof armoured cable gland For indoor and outdoor use Provides seal on cable sheath Degree of protection against ingress of water IP66/68 Compliance with AS 1939-1990 Range: ALCAW16 - ALCAW120
Standard Pack Size	5
UNSPSC Class	39121400
UOM	EA
Vendor Product	ALCAW32
Body Material	Brass
Finish	Nickel Plated
IP Rating	IP66/68
Max. Armour Wire	1.6 mm
Max. Bedding OD	26 mm
Max. Sheath OD	33.5 mm
Min. Armour Wire	1.25 mm
Min. Sheath OD	26 mm
Overall Length	17 mm
Temperature	-20 to 80 deg C
Seal Material	Thermoplastic Elastomer
Thread Length	14 mm
Thread Size	M32
Torque Rating	32 Nm
Width Across Corners	51 mm
Width Across Flats	47.5 mm
