Alco Bootlace Terminal Insulated Twin Wire 0.75mm 1.8x8mm Pin Grey 15mm OAL

chevron-left

Description

chevron-down
Twin Wire Bootlace Ferrule Insulated, 0.75 mm, 2 Conductors, 600 Volt, 8 mm Pin Length, 1.8 mm Pin Diameter, 5 mm Collar Inside Diameter, 15 mm Overall Length, Copper Sleeve, Polyamide Insulation, Grey Insulation, Copper Contact, Tin Plated, 105 deg C, 100 Pack

Key Specifications

chevron-down
Barcode (EAN-13)
9328587012416
SKU
ALCBLTGY/100
Brand
Alco

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features

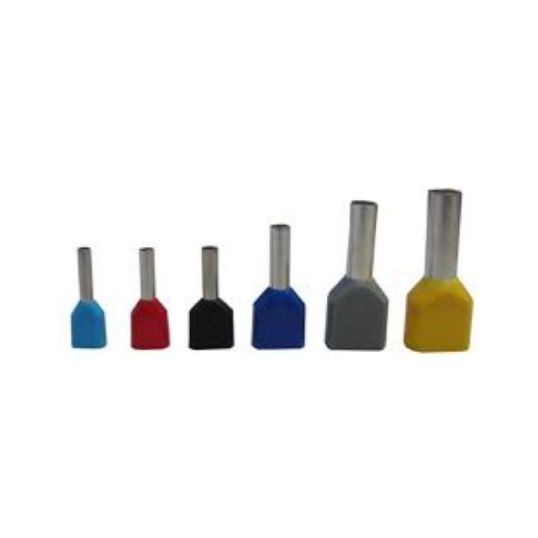

  • Pre-insulated twin bootlace terminals
  • Provide precise terminations to multi-stranded cable
  • Used to terminate two wires in the one terminal
  • Reduces possibility of short-circuiting and ensures no strands stray
  • Colour-coded polyamide insulation for easy identification
  • 600V max
Standard Pack Size 1
UNSPSC Class 39121400
UOM PA
Vendor Product ALCBLTGY/100
Collar Inside Diameter 5 mm
Conductor Size 0.75 mm
Contact Material Copper
Finish Tin Plated
Insulation Material Polyamide
Insulation Colour Grey
Number of Conductors 2
Overall Length 15 mm
Pack Size 100 Pack
Pin Diameter 1.8 mm
Pin Length 8 mm
Sleeve Material Copper
Temperature 105 deg C
Voltage Rating 600 Volt
