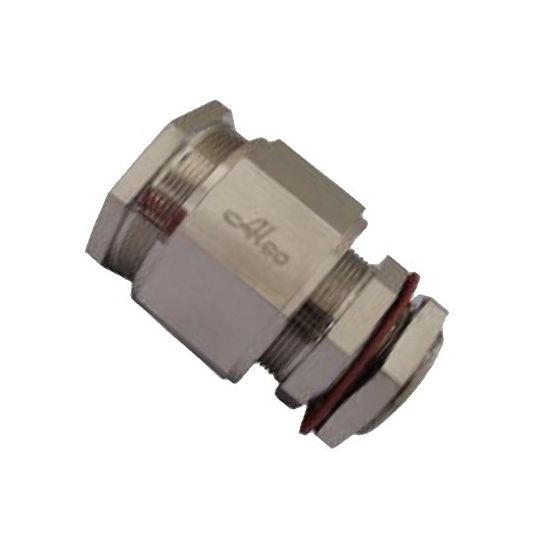

Alco Cable Gland EMC VSD Screened Cable M50 30-37mm IP66/68

Description

Cable Gland EMC VSD Screened, M50, 15 mm Thread Length, 30 mm Min. Sheath OD, 37 mm Max. Sheath OD, 57.5 mm Width Across Flats, 62.6 mm Width Across Corners, IP66/68, Brass Body, Thermoplastic Rubber Seal, Nickel Plated, -20 to 80 deg C

Key Specifications

Barcode (EAN-13)	9314520035888
SKU	ALCEMC50
Brand	Alco
Range Name	Type EMC
Product Type	Cable Glands EMC

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	For indoor and outdoor use Provides seal on cable sheath and contact between screen and earth (body) Degree of protection against ingress of water IP66/68 Meets standards AS1939-1990 Material: Brass, nickel plated Locknut supplied as standard
Standard Pack Size	3
UNSPSC Class	39121400
UOM	EA
Vendor Product	ALCEMC50
Body Material	Brass
Finish	Nickel Plated
IP Rating	IP66/68
Max. Sheath OD	37 mm
Min. Sheath OD	30 mm
Seal Material	Thermoplastic Rubber
Temperature	-20 to 80 deg C
Thread Length	15 mm
Thread Size	M50
Width Across Corners	62.6 mm
Width Across Flats	57.5 mm
