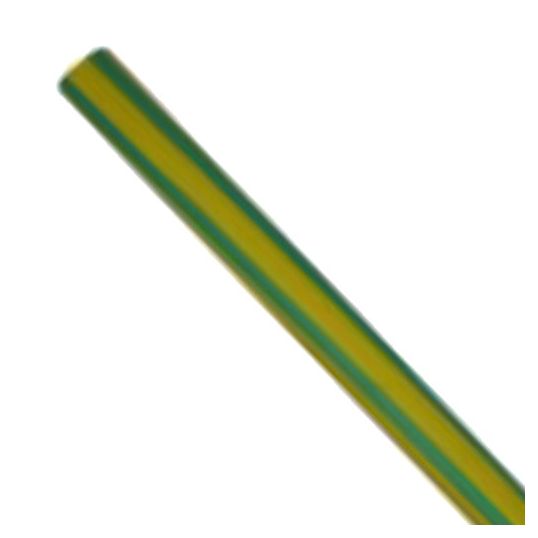

Alco HSTNW Heatshrink Tubing Thin Wall Plain Unlined 3-1.5mm 1.5M Yellow/Green
Description
Key Specifications
Barcode (EAN-13) |
9328587007238
|
---|---|
SKU |
ALCHSTNW2.5/1.25YG
|
Brand |
Alco
|
Range Name |
Type HSTNW
|
Product Type |
Heatshrink Tubing
|
Technical Specifications
Additional Information
Features |
|
---|---|
Standard Pack Size | 1 |
UNSPSC Class | 39121700 |
UOM | EA |
Vendor Product | HSTNW2.5/1.25YG |
Colour | Green/Yellow |
Dielectric Strength | ?15 kV/mm |
Elongation | 580% |
Flammability Rating | UL/VW-1 |
Lining Type | Plain Unlined |
Material | Ethylene Vinyl Acetate |
Shrink Diameter To | 1.5 mm |
Shrink Diameter From | 3 mm |
Shrink Ratio | 50% |
Shrink Temperature | 110 Deg C |
Temperature | -55 to 125 Deg C |
Tensile Strength | 15.5 MPa |
Wall Thickness Recovered | 0.4 mm |
Wall Type | Thin |
