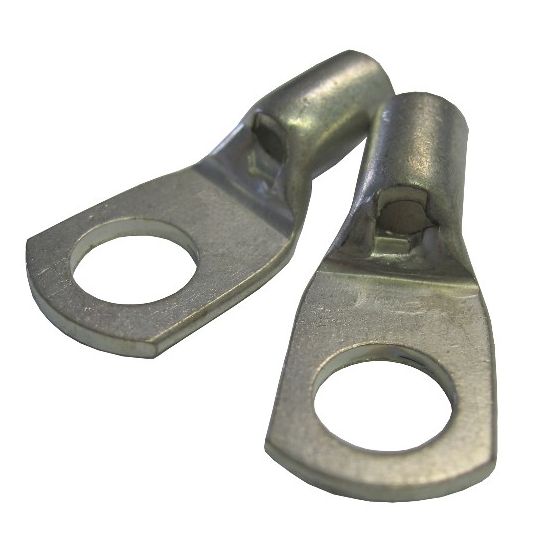

Alco Terminal Lug Standard Non-Insulated with Inspection Port Copper 120mm M8 Stud

$Alco\Alco_ALCL.jpg$

Description

Non-Insulated Crimp Lug, 120 mm, M8 Stud, Standard Barrel Type, 32 mm Barrel Length, 70 mm Overall Length, 1 Hole, 15.5 mm Inside Diameter, 20.6 mm Outside Diameter, 29 mm Lug Width, 29 mm Lug Length, Copper Body, Copper, Tin Electroplated, -55 to 155 deg C, With Inspection Port

Key Specifications

Barcode (EAN-13)	9328587024068
SKU	ALCL120M8/10
Brand	Alco

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Non-insulated electro grade copper crimp lugs suitable for stranded to fine - stranded copper cable Electro tinned finish for corrosion resistance 99.9% copper for high conductivity Includes inspection port Conform to Australian Standards Independently tested and complies to Australian Standard AS4325.1 cl7 (10-400 sq-mm )
Standard Pack Size	10
UNSPSC Class	39121400
UOM	PK
Vendor Product	ALCL120M8/10
Barrel Length	32 mm
Barrel Type	Standard
Body Material	Copper
Conductive Material	Copper
Conductor Size	120 mm
Finish	Tin Electroplated
Inside Diameter	15.5 mm
Lug Length	29 mm
Lug Width	29 mm
Number of Holes	1 Hole
Outside Diameter	20.6 mm
Overall Length	70 mm
Please Note	with Inspection Port
Stud Size	M8
Temperature	-55 to 155 deg C
