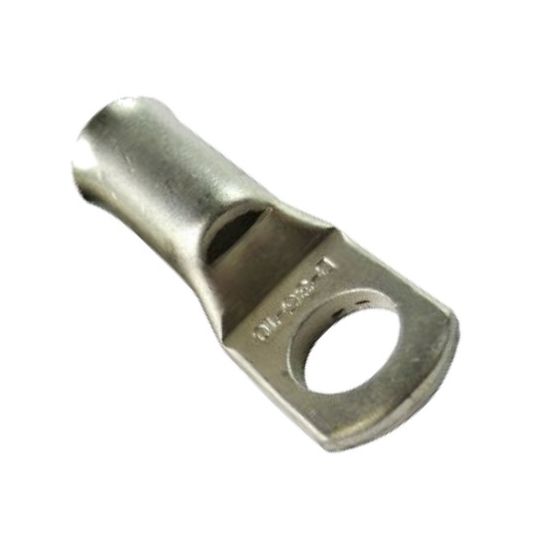

Alco Crimp Lug Bell Mouth Non-Insulated with Inspection Window Copper 95mm M10 Stud

$Alco\Alco_LBM95M10_10.jpg$

Description

Bell Mouth Non Insulated Crimp Lug, 95 mm, M10 Stud, 25 mm Barrel Length, 25 mm Palm, 60 mm Overall Length, 1 Hole, 25 mm Lug Width, 3.8 mm Lug Thickness, Copper Body, Copper, Tin Electroplated, With Inspection Window

Key Specifications

Barcode (EAN-13)	9328587014489
SKU	ALCLBM95M10/10
Brand	Alco

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Non-insulated electro grade copper crimp lugs Electro tinned finish for high conductivity Includes inspection hole Complies with AS 4325.1 (cl7) (>10 sq-mm) Operating temperature: -55 to +155 deg C Suitable for stranded to fine stranded copper cable
Standard Pack Size	10
UNSPSC Class	39121400
UOM	PK
Vendor Product	ALCLBM95M10/10
Barrel Length	25 mm
Body Material	Copper
Conductive Material	Copper
Conductor Size	95 mm
Finish	Tin Electroplated
Lug Thickness	3.8 mm
Lug Width	25 mm
Number of Holes	1 Hole
Overall Length	60 mm
Palm Size	25 mm
Please Note	with Inspection Window
Stud Size	M10
