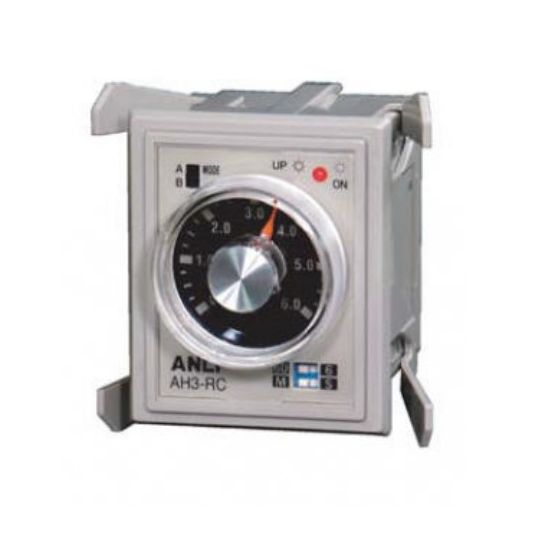

Anly Time Delay Relay Analogue Surface/Flush Mount 2 Mode DPDT SPDT Timer 1s/10s/1min/10min 24/240VAC/DC

Description

Time Delay Relay Analogue, 24/240 Volt AC/DC, 2 VA, 2Mode DPDT, SPDT, Timing Function: Timer, Timing Range: 1 sec/10 sec/1 min/10 min, 5000000 Mechanical, 100000 Electrical Cycles, Surface Mount/Flush, -10 to 50 deg C

Key Specifications

Barcode (EAN-13)	932333600082
SKU	ANLAH3-RA
Brand	Anly
Product Type	Time Delay Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Customised CMOS IC for low power consumption, high operation stability and extreme timing accuracy Flush mount with Type Y-40 adaptor and surface mount with adaptor Each timing series has 4 time ranges, selectable via DIP switch 2 modes selectable via slide switch Mode A (2C) for DPDT time-limiting output contacts Mode B (1A1C) for SPDT instantaneous and time-limiting output contacts
Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	AH3-RA
Contact Configuration	2Mode DPDT/SPDT
Mounting Method	Surface/Flush
Operating Cycles	5000000 Mechanical/100000 Electrical Cycles
Power Rating	2 VA
Temperature	-10 to 50 deg C
Timing Function	Timer
Timing Range	1 Second/10 Seconds/1 Minute/10 Minutes
Voltage	24-240 Volt AC/DC
