APEC Rigid VSD/EMC Cable Screened 3 Core & 3 Earth 120mm 0.6/1kV Stranded Copper XLPE/PVC Black
Description

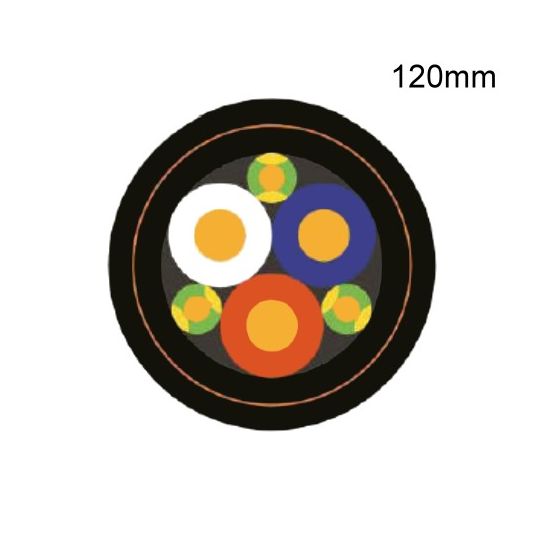

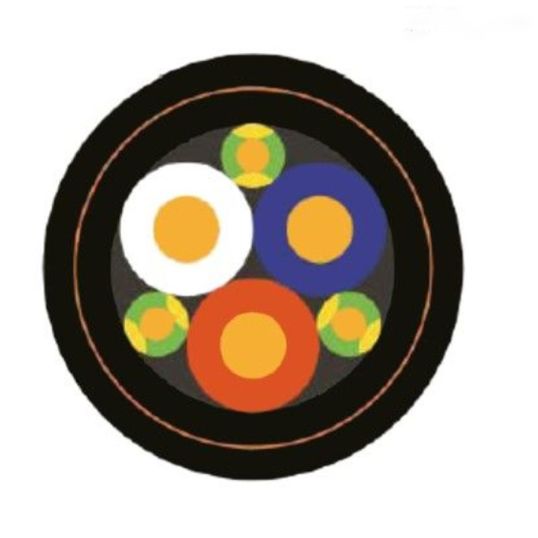

Rigid VSD/EMC Cable, Screened, 3 Core & 3 Earth, 120 mm, Stranded Copper, 0.6/1 kV, 25 mm Earth Conductor, 45.7 mm Overall Diameter, 1.2 mm Insulation Thickness, 2.08 mm Sheath Thickness, XLPE Insulation, 5V-90 PVC Sheath, Red Blue White Green/Yellow Cores, Black Sheath, 90 deg C, AS/NZS 5000.1
Key Specifications
| Barcode (EAN-13) |
932666301103
|
|---|---|
| SKU |
APEVSD120E303B5K1
|
| Brand |
APEC
|
| Product Type |
VSD/EMC Cable Rigid
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | VSD120E303B5K1 |
| Conductor Size | 120 mm |
| Conductor Type | Stranded Copper |
| Core Colours | Red/Blue/White/Green/Yellow |
| Earth Conductor Size | 25 mm |
| Insulation Material | XLPE |
| Insulation Thickness | 1.2 mm |
| Number of Cores | 3 Core + 3 Earth |
| Overall Diameter | 45.7 mm |
| Sheath Colour | Black |
| Sheath Material | 5V-90 PVC |
| Sheath Thickness | 2.08 mm |
| Standards | AS/NZS 5000.1 |
| Temperature | 90 deg C |
| Voltage | 0.6-1 kV |
