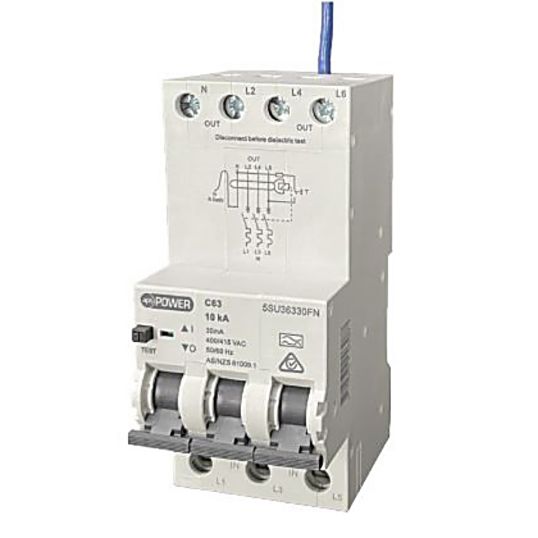

APS RCBO Type A 400-415 VAC 20 Amp 10 kA 3 Pole + N 30 mA IP4X/2X 3 Module 53.4 mm

$APS\APS_5SU32030FN.jpg$

Description

The 'APS Power' 3 Phase and Neutral RCBO has been purpose-built for Australian industry and use in the 'APS DB' family of distribution boards.

SKU	APS5SU32030FN
Brand	APS

Looking for something specific? Search with keywords to help filter your required specifications.

Features	Type A RCD tripping characteristic Fixed (Unswitched) Neutral (FN = Fixed Neutral) Toggle free operation Supplied with 900 mm long Neutral connection lead (blue) Suitable for standard chassis types ENCY or ISCY fitted with 5SY MCBs or 5SU9 304 RCBOs. Padlocking accessory
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	5SU32030FN
Colour	Light Grey
Connection Type	Screw Clamp
Current	20 Amp
Depth	79 mm
Interrupt Capacity	10 kA
Modules	3 Module 53.4 mm
Frequency	50/60 Hz
IP Rating	IP4X/2X
Height	120 mm
Number Of Poles	3 Pole
Mounting Method	DIN Rail 35 mm
Please Note	Fixed Neutral
Temperature	-15 to 65 deg C
Terminal Connection	0.75 sq-mm Solid/0.75 sq-mm Flexible/0.75 sq-mm Stranded
Trip Characteristic	C Curve
Trip Sensitivity	30 mA
Voltage	400-415 Volt AC
Width	53.4 mm
