ASI Lamps Type 19 Miniature Lamp T10 2.4W 24V 100mA BA9s 1 MSCP 1000 hrs C2F Filament 10x28mm
Description

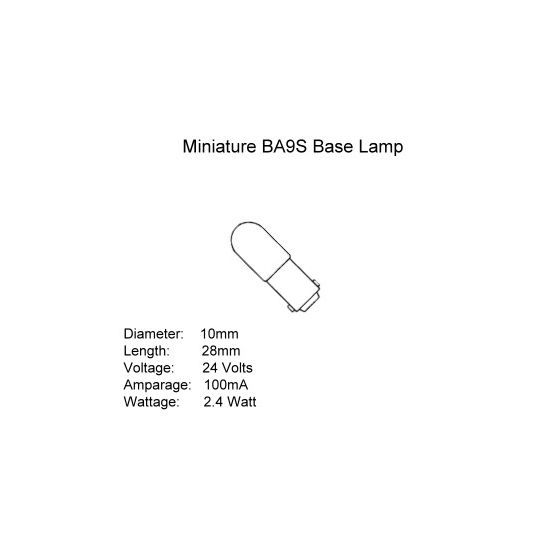

Indicator Lamp Miniature, 2.4 Watt, 24 Volt, 100 mA, BA9s Base, T10, 1 MSCP, 1000 hrs, C2F Filament, 10 mm Diameter, 28 mm Length
Key Specifications
| SKU |
ASS19-024/100
|
|---|---|
| Brand |
ASI Lamps
|
| Range Name |
Type 19
|
| Product Type |
Indicator Lamps Mini
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39101600 |
| UOM | EA |
| Vendor Product | 019-024/100 |
| Average Lamp Life | 1000 hrs |
| Base Type | BA9s |
| Diameter | 10 mm |
| Filament | C2F |
| Current | 100 mA |
| Lamp Shape | T10 |
| MSCP | 1 MSCP |
| Voltage | 24 Volt |
| Wattage | 2.4 Watt |
