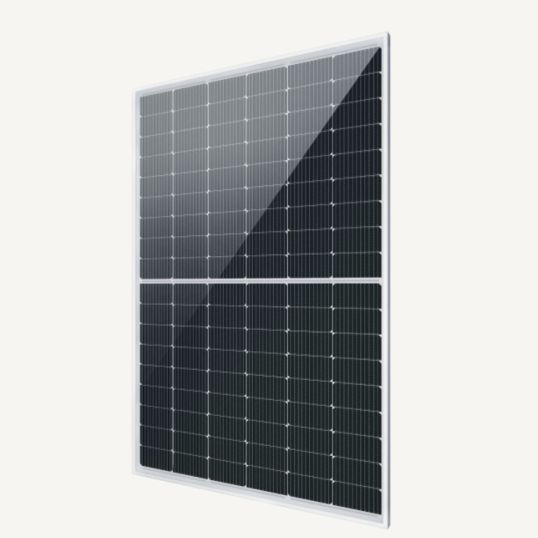

Astronergy Astro 5s Monofacial Solar Panel 395W P-Type Mono-Crystalline 182 Cells Silver Frame 30mm

chevron-left

Description

chevron-down
Solar Panel, P-Type Mono-Crystalline, 182 Cell, 395 Watt, 30.92 Volt, 12.77 Amp, 36.8 Volt Open Circuit, 13.52 Amp Short Circuit, 25 Amp Max. Fuse Current, 1500 Volt DC Max. System Voltage, 20.2% Efficiency, PV-HCB40/PV-KST4-EVO2/XY-UR, PV-KBT4-EVO2/XY-UR (Optional) Connector, 4 mm (IEC)/12 AWG (UL) Output Cables, IP68/3 with Bypass Diodes Junction Box, Silver Anodized Aluminum Frame Construction, 3.2 mm Thick Front Glass, -0.35%/deg C Temperature Coefficient, 1722 mm Length, 1134 mm Width, 30 mm Height, 21.6 kg (Tolerance +/- 1 kg), ISO 9001:2015, ISO 14001:2015, ISO 45001

Key Specifications

chevron-down
SKU
ASTCHSM54-HC-395SF
Brand
Astronergy
Product Type
Solar Panels

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Standard Pack Size 1
UNSPSC Class 26111600
UOM EA
Vendor Product CHSM54-HC-395SF
Cell Type Monocrystalline
Certifications ISO 9001 2015 ISO 14001 2015 ISO 45001
Connector Type PV-HCB40/PV-KST4-EVO2/XY-UR; PV-KBT4-EVO2/XY-UR (Optional)
Efficiency 20.20%
Frame Construction Silver Anodized Aluminum
Front Glass 3.2 mm
Height 30 mm
Item Weight 21.6 kg (Tolerance +/- 1 kg)
Junction Box IP68/3 with Bypass Diodes
Max. Current 12.77 Amp
Max. Fuse Current 25 Amp
Max. Voltage 30.92 Volt
Max. System Voltage 1500 Volt DC
Number Of Cells 182
Open Circuit Voltage 36.8 Volt
Output Cables 4 mm (IEC)/12 AWG (UL)
Short Circuit Current 13.52 Amp
Temperature Coefficient -0.35%/deg C
Wattage 395 Watt
Width 1134 mm
