AFL Fiber Optic Cable Loose Tube 12 Count Singlemode G.652.D Polyethylene

Description

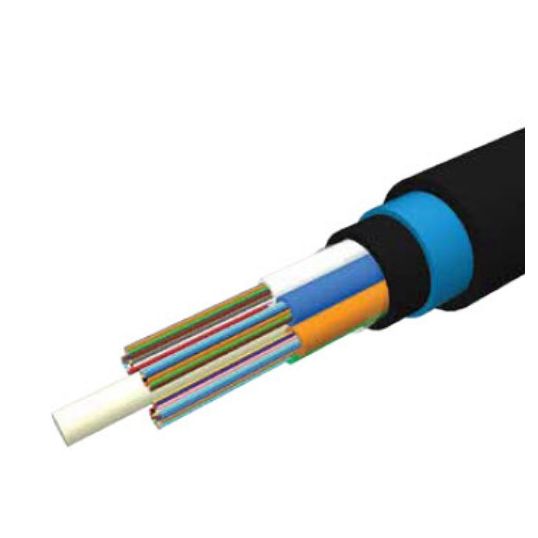

Stranded cable comprising up to 72 optical fibres contained in jelly-filled loose tubes (up to 12 fibres per tube). The tubes and fillers are laid around a central strength member and contained within a dry, water blocked cable core, sheathed with polyethylene (PE), termite resistant nylon jacket and an additional UV stable, sacrificial PE outer sheath. Surface printing includes length marking at one metre intervals

Key Specifications

SKU	ATALMH61DPA012BK
Brand	AFL
Product Type	Loose Tube Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Insect Resistant Nylon Inner Sheath Protective outer PE Sheath Drycore construction resulting in less mess and time lost for fibre breakout Various Sheath Options available (Speak to your AFL Representative) Improved UV Resistance
Standard Pack Size	1
UNSPSC Class	43223300
UOM	MTR
Vendor Product	LMH61DPA012BK
Bend Radius	232 mm Under Load/116 mm No Load
Fibre Count	12
Fibre Mode	Singlemode
Impact Resistance	1 g/m
Fibre Type	G.652.D
Outside Diameter	11.6 mm
Sheath Material	Polyethylene
Temperature	40 to 70 deg C
Tube Size	2 mm
