AFL Fibre Optic Cable Mini Axial Loose Tube Singlemode 6 Fibre Polyethylene

$AFL\AFL_LQD11FPA006BE.JPG$

Description

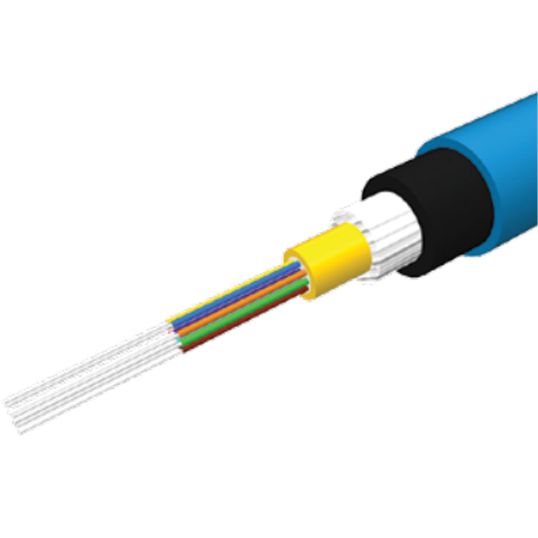

Axial loose tube cable comprising up to 12 optical fibres contained in a jelly filled loose tube strengthened with flexible non-metallic armour bonded to a polyethylene (PE) sheath and an outer insect resistant Nylon jacket. Surface printing includes length marking at one metre intervals.

Key Specifications

SKU	ATALQD11FPA006BE
Brand	AFL

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Axial loose tube cable comprising up to 12 optical fibres contained in a jelly filled loose tube strengthened with flexible non-metallic armour bonded to a polyethylene (PE) sheath and an outer insect resistant Nylon jacket. Surface printing includes length marking at one metre intervals. Drycore construction resulting in less mess and time lost for fibre breakout Various Sheath Options available (Speak to your AFL Representative)
Standard Pack Size	1
UNSPSC Class	43223300
UOM	MTR
Vendor Product	LQD11FPA006BE
Bend Radius	100 mm Under Load/50 mm No Load
Fibre Count	6
Fibre Core Diameter	55 um
Fibre Mode	Singlemode
Fibre Type	G.657.A1
Number of Fibres	Up to 12
Outside Diameter	5 mm
Impact Resistance	500 g/m
Sheath Material	Polyethylene
Temperature	40 to 70 deg C
Tube Size	2 mm
