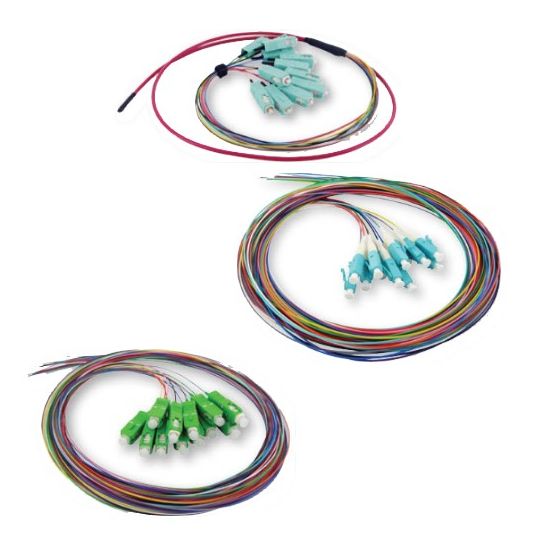

AFL Fibre Optic Pigtail Pack Multi-Mode OM4 50um/125um LC-Pigtail PVC Colour Coded 6 Colour 2m

Description

Fibre Optic Pigtail Pack, Multi-Mode, Connector A: LC, Connector B: Pigtail, Multi-Mode, Fibre Type: 50 um Fibre 125 um Buffer OM4, 900 um Buffer Diameter, 2 mtr Cord Length, Attenuation: 3 dB/km at 850 nm, 1 dB/km at 1310 nm, Insertion Loss: 0.25 dB at 850/1300 nm, PVC Sheath, Colour Coded 6 Colour Sheath,-20 to 60 deg C, 6/Pack

Key Specifications

SKU	ATAP4LC2M-C6-C900
Brand	AFL
Product Type	Pigtails Fibre

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	High-quality, machine polished connectors for consistent low loss performance Interferometer geometry compliant connectors offer repeatable and low loss intermateability Factory standards-based testing practices provide repeatable and traceable results Video-based inspection ensures connector endfaces are free of defects and contamination Flexible and easy to strip fibre buffering Identifiable fibre buffer colours under all lighting conditions Short buffer style connector boots for ease of fibre management in high density applications Connector cleaning instructions included in each bag of 900 um pigtails Individual packaging and labelling provides protection, performance data and traceability Range of cable constructions to suit every environment
Standard Pack Size	1
UNSPSC Class	43223300
UOM	EA
Vendor Product	P4LC2M-C6-C900-NLA
Attenuation	3 dB/km at 850 nm/1 dB/km at 1310 nm
Connector A	LC
Connector B	Pigtail
Cord Length	2 mtr
Fibre Mode	Multi-Mode
Insertion Loss	0.25 dB at 850/1300 nm
Fibre Type	50 um Fibre 125 um Buffer OM4
Pack Size	6 Pack
Sheath Colour	Colour Coded 6 Colour
Sheath Material	PVC
Temperature	-20 to 60 deg C
