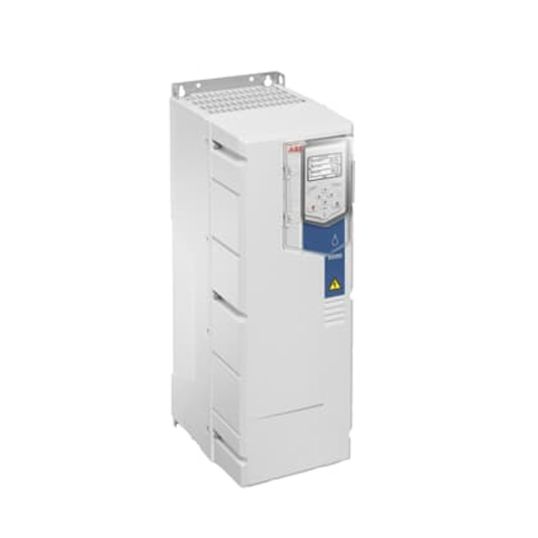

ABB ACQ580-01-062A-4+B056+J429 ACQ580 Variable Speed Drive 30KW 62amp 3Phase IP55 Frame Size R4

$ABB\ABB_3AXD50000034622-34623.JPG$

Description

The ACQ580 drives offer a wide range of standard inputs and outputs. In addition, the drive has two option slots that can be used for extensions including fieldbus adapter modules and input/output extension modules. All signals and functions for each I/O point can be freely configured via drive settings. AI1, AI2 and AO1 can be set individually for either mA or V signals.

Key Specifications

SKU	AWM3AXD50000034622
Brand	ABB
Range Name	ACQ580
Product Type	Motor Starters Variable Speed Drive

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Secure the flow of water and wastewater Designed with reliability in mind
Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	3AXD50000034622
Depth	265 mm
Current	62 Amp
Frequency	48-63 Hz
Motor Power	30 kW
IP Rating	IP55
Number of Outputs	2 Analog / 3 Digital
Mounting Method	Wall
Number of Inputs	2 Analog / 6 Digital
Height	636 mm
Phase	3 Phase
Operating Voltage	380-480 Volt
Temperature	-15 to 50 deg C
Size	Frame R4
Width	203 mm
