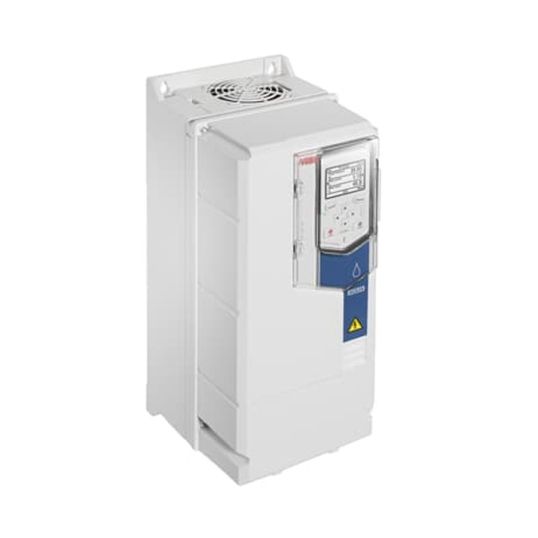

ABB ACQ580-01-033A-4+B056+J429 ACQ580 Variable Speed Drive 15.0kW 32.0amp 3Phase IP55 Frame Size R3

$ABB\ABB_3AXD50000039046-39047-39048.JPG$

Description

The ACQ580 drives offer a wide range of standard inputs and outputs. In addition, the drive has two option slots that can be used for extensions including fieldbus adapter modules and input/output extension modules. All signals and functions for each I/O point can be freely configured via drive settings. AI1, AI2 and AO1 can be set individually for either mA or V signals.

Key Specifications

SKU	AWM3AXD50000039046
Brand	ABB
Range Name	ACQ580
Product Type	Motor Starters Variable Speed Drive

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Secure the flow of water and wastewater Designed with reliability in mind
Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	3AXD50000039046
Current	32 Amp
Depth	237 mm
Frequency	48-63 Hz
Height	490 mm
IP Rating	IP55
Motor Power	15 kW
Number of Inputs	2 Analog / 6 Digital
Mounting Method	Wall
Number of Outputs	2 Analog / 3 Digital
Operating Voltage	380-480 Volt
Phase	3 Phase
Temperature	-15 to 50 deg C
Size	Frame R3
Width	206 mm
