Belden Audio Snake Cable 8-24AWG Tinned Copper/ Polyolefin/Individual Shielded/PVC Black

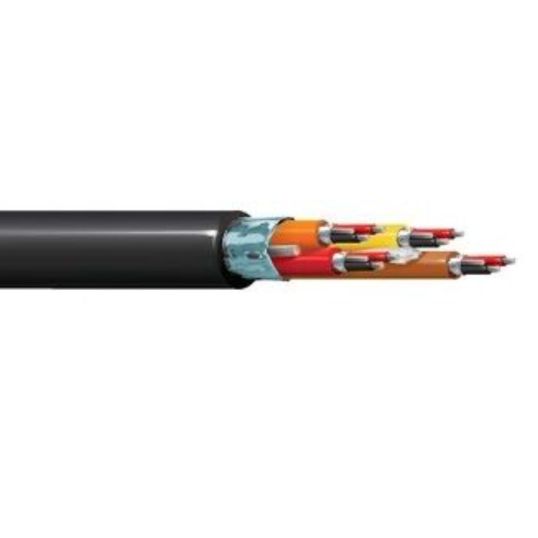

$Belden\Belden_1512CB591000.jpg$

Description

Audio Snake Cable, 300 Volt RMS, 24 AWG, 152 LBR Pulling Tension, 7/32mm Strands, 0.008 in Insulation Thickness, 0.033 in Sheath Thickness, 23.3 Ohm/1000ft, Tinned Copper Conductor, Polypropylene Insulation, PVC Sheath, Bi-Laminate (Aluminium+Poly) Screen, Brown, Red, Orange, Yellow, Green, Blue, Purple, Grey, Red & Black Insulation, Black Sheath, 11.5mm Overall Diameter,-35 to 75 deg C

Key Specifications

SKU	BEL1512CB591000
Brand	Belden
Product Type	Audio Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	305
UNSPSC Class	52161600
UOM	MTR
Vendor Product	1512C B591000
Conductor Resistance	23.3 Ohm/1000ft
Conductor Size	24 AWG
Insulation Material	Polypropylene
Insulation Thickness	0.008 in
Overall Diameter	11.5 mm
Pulling Tension	152 LBR
Screen Material	Bi-Laminate (Aluminium+Poly)
Sheath Material	PVC
Sheath Thickness	0.033 in
Sheath Colour	Black
Stranding	7/32 mm
