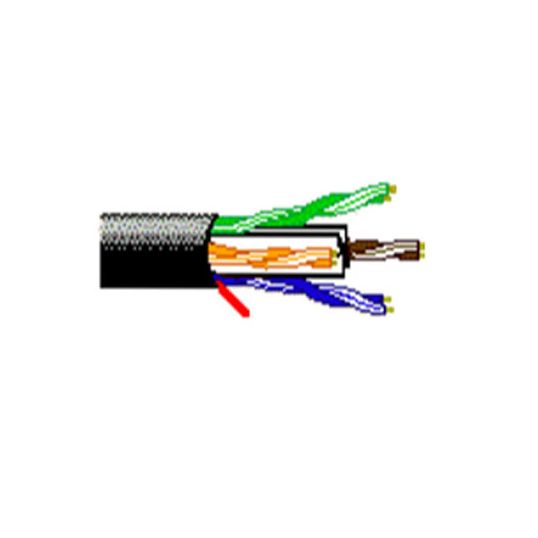

Belden 7927A Data Cable Cat6 Multi-Conductor DataTuff 4 Pair 23AWG Polyolefin/PVC Black
Description
Key Specifications
SKU |
BEL7927A0101000
|
---|---|
Brand |
Belden
|
Range Name |
Inca
|
Product Type |
Cat6 Cable
|
Technical Specifications
Additional Information
Standard Pack Size | 1 |
---|---|
UNSPSC Class | 26121600 |
UOM | EA |
Vendor Product | 7927A 0101000 |
Conductor Material | Solid Bare Copper |
Cable Type | Cat6 |
Conductor Resistance | 8.2 Ohm/100 mtr at 20 deg C |
Bend Radius | 6.35mm |
Conductor Size | 23 AWG |
Frequency Bandwidth | 600 MHz |
Insulation Material | Polyolefin |
Max. Pulling Force | 200.169 N |
Outside Diameter | 6.375mm x 8.611mm |
Pair Count | 4 Pair |
Sheath Colour | Black |
Sheath Material | PVC |
Temperature | -40 to 75 deg C |
Voltage | 300 Volt |
