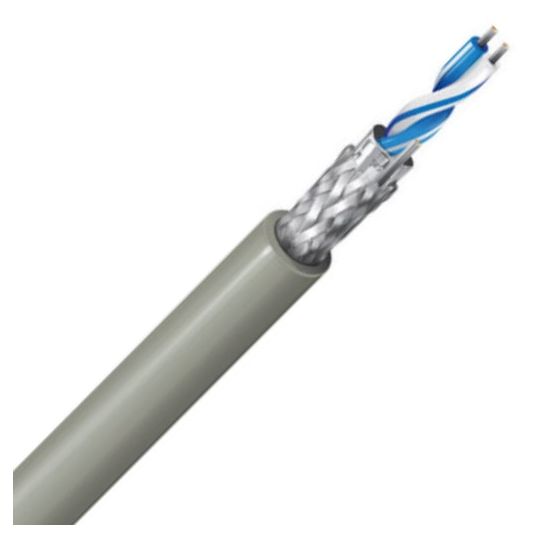

Belden 24 AWG 1 Pair Grey Data Cable Overall Screened Polyethylene/PVC
Description
Data Cable, 24 AWG, Tinned Annealed Copper, 0.3 kV, 2.1 Amp, 1 Pair, 7x32 Strands, Overall Screened Screen, 0.232 in Overall Diameter, 2.5 in Bend Radius, 0.023 in Insulation Thickness, 0.035 in Sheath Thickness, 72.3 lbs Pulling Tension, DC: 24 Ohm/1000ft Conductor Resistance, 90% Screen Coverage, Tinned Copper Braid/Aluminium/Polyester Tape Screen, White/Blue Core, Polyethylene Insulation, PVC Sheath, Grey Sheath, -30 to 80 deg C, UL 1685 UL Loading IEC 60332-1-2, RS485
Key Specifications
| Barcode (EAN-13) |
9318674023883
|
|---|---|
| SKU |
BEL98410601000
|
| Brand |
Belden
|
| Range Name |
RS-485
|
| Product Type |
Data Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 305 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 9841 0601000 |
| Conductor Resistance | DC: 24 Ohm/1000ft |
| Bend Radius | 2.5 in |
| Conductor Size | 24 AWG |
| Core Colours | White/Blue |
| Conductor Type | Tinned Annealed Copper |
| Current | 2.1 Amp |
| Insulation Material | Polyethylene |
| Insulation Thickness | 0.023 in |
| Number of Pairs | 1 Pair |
| Overall Diameter | 0.232 in |
| Please Note | RS485 |
| Pulling Tension | 72.3 lbs |
| Screen Format | Overall Screened |
| Screen Coverage | 90% |
| Screen Material | Tinned Copper Braid/Aluminium/Polyester Tape |
| Sheath Colour | Grey |
| Sheath Thickness | 0.035 in |
| Sheath Material | PVC |
| Standards | UL 1685 UL Loading IEC 60332-1-2 |
| Stranding | 7x32 |
| Temperature | -30 to 80 deg C |
| Voltage | 0.3 kV |
