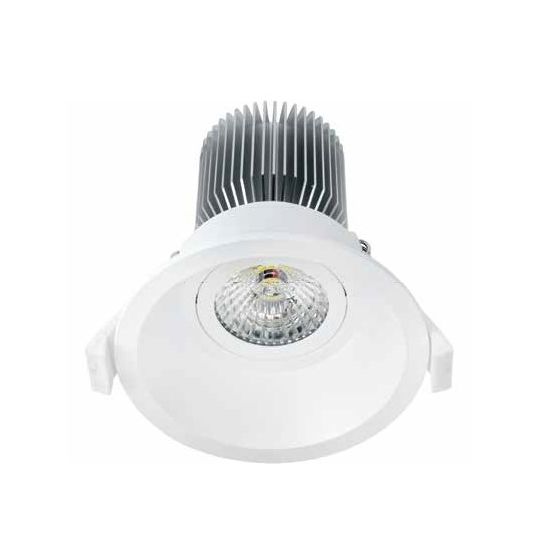

Brilliant Lighting LED Downlight Gimble 90mm Cutout COB LED 10W 3/4200/6.5K White

chevron-left

Description

chevron-down
Generates a clear, CRI sp light using an efficient and high powered C.O.B (chip on board) LED. Featuring unique diamond lens optics to minimise multiple shadows. CCT Switchable between Warm White (3000K), Cool White (4200K) and Daylight (6500K). Rated for IC-4 Abutted and Covered usage to allow for covering with thermal insulation. Fixed head downlight. Die cast aluminium construction. White or black powder coated finish. High efficiency LED SMD Array. External dimmable LED driver. Flex and plug (Total length 1m). Long lasting up to 30000 hours. IP44 (front only).

Key Specifications

chevron-down
Barcode (EAN-13)
9312641204541
SKU
BRI20454/05
Brand
Brilliant Lighting
Range Name
Mini Trim II
Product Type
LED Downlights

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • CCT Switchable between Warm White (3000K), Cool White (4200K) and Daylight (6500K)
  • Can be abutted against and/or covered with thermal building insulation
  • Gimbal head downlight
  • Die cast aluminium construction
  • COB LED technology for superior light output
  • External dimmable LED driver
Standard Pack Size 1
UNSPSC Class 39111500
UOM EA
Vendor Product 20454/05
Average Lamp Life 30000 hrs
Beam Angle 50 deg
Colour Designation Warm White/Cool White/Daylight
Colour Temperature 3000/4200/6500K
Colour White
CRI >80
Cut-Out Diameter 90 mm
Dimmable Dimmable
Finish Powder Coated
Height 107 mm
Input Voltage 240 Volt
IP Rating IP44
Light Source COB LED Chip
Lumens 750/860/880 lm
Material Die-Cast Aluminium
Wattage 10 Watt
Power Factor 0.8
Width 100 mm
