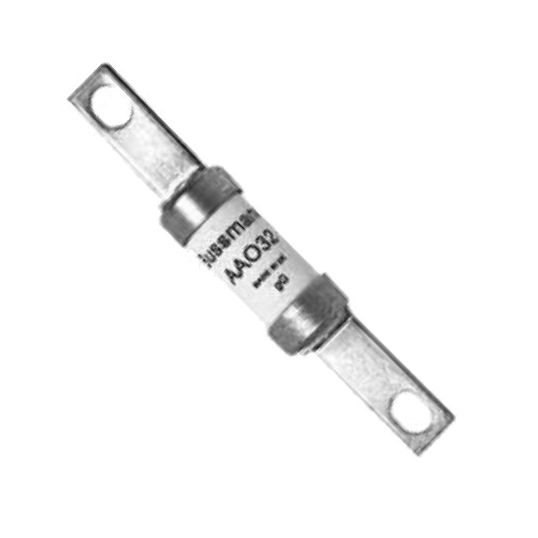

Bussmann Fuse Link HRC Bolt In Offset 32 Amp 550VAC 80 kA Class gG BS88 Type A2
Loading...
Description
Fuse Link HRC Bolt In Offset, 550 VAC, 32 Amp, Class gG, Interrupt Capacity: 80 kA, 73mm Fixing Centres, Bolt In Offset Tag, 14mm Diameter x 85mm Length, BS88 Type A2
Key Specifications
| SKU |
BUSAAO32
|
|---|---|
| Brand |
Bussmann
|
| Product Type |
Fuse Links HRC Bolt In
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 20 |
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | AAO32 |
| Dimensions | 14 mm Diameter x 85 mm Length |
| Current | 32 Amp |
| Tag Type | Bolt In Offset |
| Utilisation Category | Class gG |
| Standard Reference | BS88 Type A2 |
| Interrupt Capacity | 80 kA |
| Fixing Centres | 73 mm |
| Voltage | 550 Volt AC |
