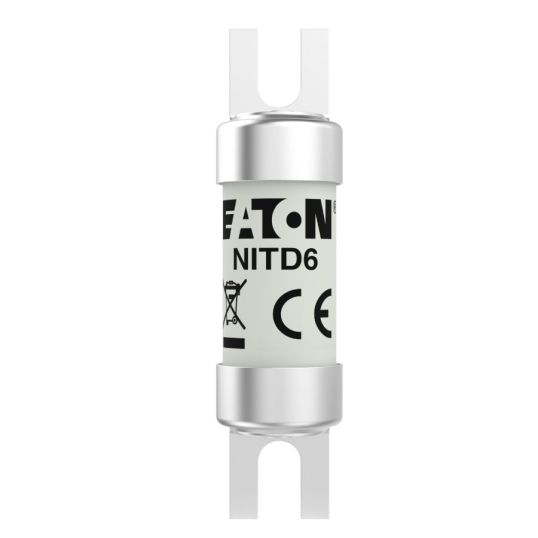

Bussmann Fuse Link HRC Bolt In Offset 6 Amp 550VAC 80 kA Class gG BS88 Type A1
Loading...
Description
HRC Fuse Link, 550 Volt AC, 6 Amp, 80 kA Interrupt Capacity, Class gG, 44 mm Fixing Centres, Bolt In Offset, 14 mm Diameter x 55 mm Length, BS88 Type A1
Key Specifications
| SKU |
BUSNITD6
|
|---|---|
| Brand |
Bussmann
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 20 |
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | NITD6 |
| Current | 6 Amp |
| Dimensions | 14 mm Diameter x 55 mm Length |
| Fixing Centres | 44 mm |
| Interrupt Capacity | 80 kA |
| Tag Type | Bolt In Offset |
| Standard Reference | BS88 Type A1 |
| Utilisation Category | Class gG |
| Voltage | 550 Volt AC |
