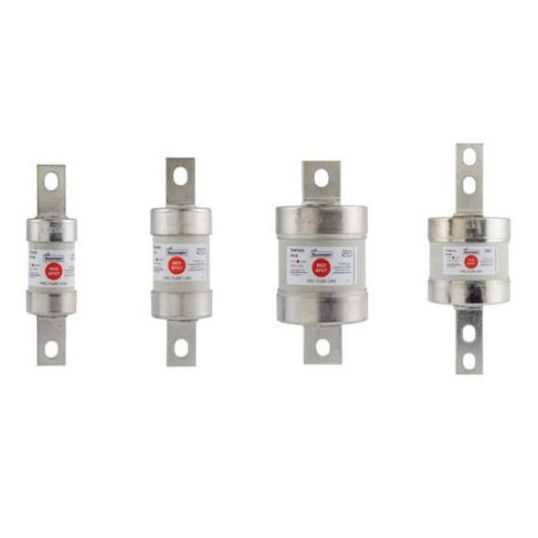

Bussmann Fuse Link HRC Bolt In Centre 125 Amp 660 to 690VAC/350VDC 80 kA at 690VAC Class gG BS88 Type B1

chevron-left

Description

chevron-down
Fuse Link HRC Bolt In Centre, 660 to 690 VAC/350 VDC, 125 Amp, Class gG, Interrupt Capacity: 80 kA at 690 VAC, 111mm Fixing Centres, Bolt In Centre Tag, 33.7mm Diameter x 136.5mm Length, BS88 Type B1

Key Specifications

chevron-down
SKU
BUSTF125
Brand
Bussmann
Product Type
Fuse Links HRC

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • For the protection of general industrial applications, e.g. power distribution, cable protection, motor protection
  • For use with RS200 fuse holders
Standard Pack Size 1
UNSPSC Class 39121600
UOM EA
Vendor Product TF125
Current 125 Amp
Dimensions 33.7 mm Diameter x 136.5 mm Length
Fixing Centres 111 mm
Interrupt Capacity 80 kA
Tag Type Bolt In Centre
Standard Reference BS88 Type B1
Voltage 660-690 Volt AC/350 Volt DC
Utilisation Category Class gG
