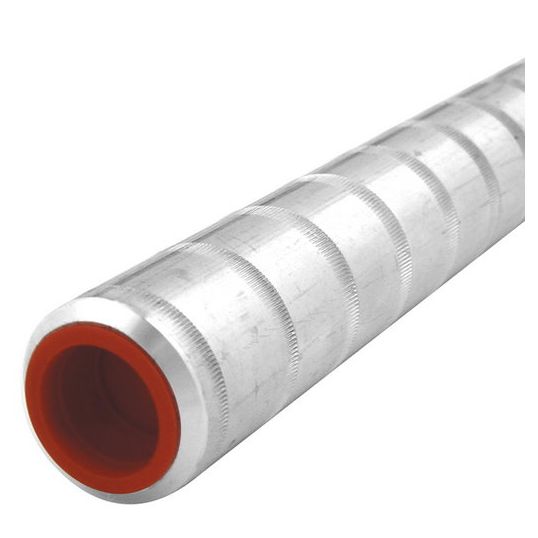

Cabac Full Tension Sleeve R Style 6/1/3.75 4/3/3.75 673mm Banana Walnut

$Cabac\Cabac_AFT_R.jpg$

Description

Full Tension Sleeve, R Style, 673 mm, Number of Strands: 6/1/3.75, 4/3/3.75 ACSR, ACSR Conductor Name: Banana, Walnut, Aluminium, 12.7mm Inside Diameter, 11.25mm Conductor Outside Diameter, 470 mm Length, A/F Hex Die: 17.3 mm, Crimping Die: HT-95/120AL, 11 Crimps

Key Specifications

Barcode (EAN-13)	9318674501381
SKU	CAAAFT50R
Brand	Cabac
Product Type	Tension Sleeves

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	O/H sleeves 'R' Style - designed for full tension loads with ACSR (for stranding's with high steel content please contact us to validate use) Featuring a centre cable location dimple Filled with jointing compound Crimp using hex crimps or 'versa-crimp' indent style crimping
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	AFT50R
ACSR Conductor Name	Banana/Walnut
Conductor Outside Diameter	11.25 mm
Conductor Size	673 mm
Crimping Die	HT-95/120AL
Inside Diameter	12.7 mm
Number of Crimps	11
Number of Strands	6/1/3.75; 4/3/3.75 ACSR
