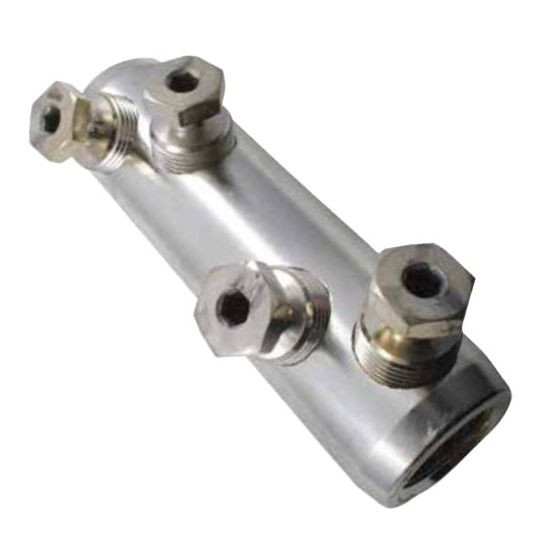

Cabac Bolted Lug with Shear Head Bolts Aluminium 95mm

chevron-left

Description

chevron-down
Bolted Lug with Shear Head Bolts, Aluminium, 95 mm Conductor, Conductor Bolt Diameter: 12 mm, 4 Bolts, 120 MPa, Aluminium Body, Aluminium Conductor, Brass Alloy Screw, Tin Plated Finish, -20 to 140 deg C, with Shear Head Bolts

Key Specifications

chevron-down
Barcode (EAN-13)
9318674717270
SKU
CAABALK95
Brand
Cabac
Range Name
Bolted Lugs & Links
Product Type
Lugs Bolted

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • For low voltage applications up to 1000 Volts
  • For solid and stranded, sector or circular conductor, aluminium or copper cables
  • Tin plated - designed to be bolted to copper or aluminium solid or stranded, sector or circular connectors
  • Proven shear bolt technology for the perfect connection
  • Grooved surface on inner wall breaks conductor oxide layers
  • Conforms to Australian and many international standards
  • Nominal dimensions for larger O.D.
Standard Pack Size 1
UNSPSC Class 39121400
UOM EA
Vendor Product BALK95
Conductive Material Aluminium
Body Material Aluminium
Conductor Size 95 mm
Finish Tin Plated
Number of Bolts 4
Temperature -20 to 140 deg C
