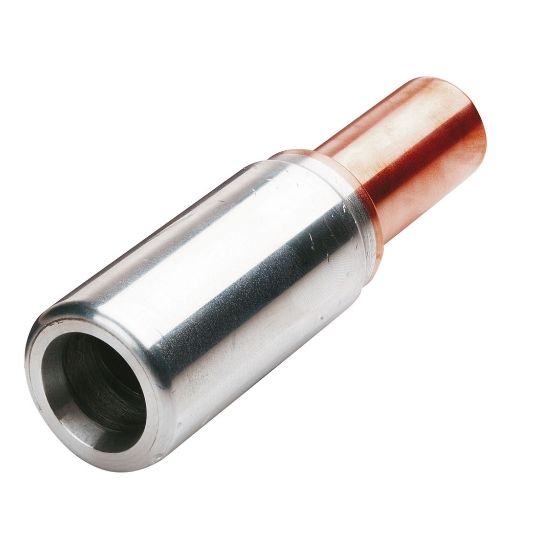

Cabac Crimp Link Reducing Bi-Metal 630mm 500mm 127/2.52 61/3.20 160mm OAL

Description

Crimp Links, Reducing, Bi-Metal, Conductor Size from 630 mm to 500 mm, Number of Strands from 127/2.52 to 61/3.20, Inside Diameter from 34 mm to 30 mm, 160 mm Overall Length, A/F Hex Die from 43.2 mm to 31 mm, Crimping Die from RHU520-800 to ECW-H3D-500, Number of Crimps from 2 to 3, Bi-Metal Body, Aluminium/Copper Barrel Conductor

Key Specifications

Barcode (EAN-13)	9318674507062
SKU	CAABLK630/500
Brand	Cabac
Range Name	Reducing Links Bi-Metal
Product Type	Links Reducing Type

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Manufactured using friction welding process producing a very strong electrically sound joint, which will not be subject to electrolysis Link circular or sector stranded aluminium cable to circular copper cable Designed to be crimped with CABAC and MSS Power tools and dies Crimp with standard hex dies
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	BLK630/500
Body Material	Bi-Metal
Conductive Material	Aluminium/Copper Barrel
From Conductor Size	630 mm
From Crimping Die	RHU520-800
From Inside Diameter	34 mm
From Number of Crimps	2
From Number of Strands	127/2.52
Overall Length	160 mm
To Conductor Size	500 mm
To Crimping Die	ECW-H3D-500
To Inside Diameter	30 mm
To Number of Crimps	3
To Number of Strands	61/3.20
