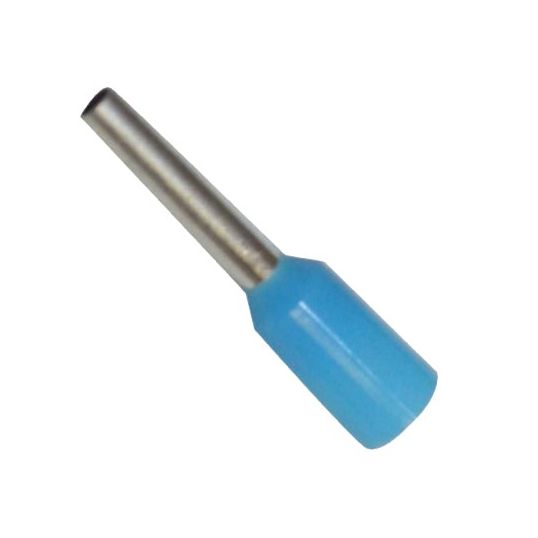

Cabac Bootlace Ferrule Insulated 0.75mm 1.5x8mm Pin 14mm OAL Blue

Description

Insulated Bootlace Ferrule, 0.75 mm, 1 Conductors, 8 mm Pin Length, 1.5 mm Pin Diameter, 3.8 mm Collar Inside Diameter, HNKE12/HNKE3/HNKE6/HNKE5/HNKE9/HNKE10/HNKE11, 14 mm Overall Length, Copper Sleeve, Nylon Insulation, Blue Insulation, Copper Contact, Tin Plated, -55 to 105 deg C, 500 Pack

Key Specifications

Barcode (EAN-13)	9318674729532
SKU	CAABLP075/500
Brand	Cabac
Range Name	Pre-Insulated Terminals

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Used to terminate conductors by containing the strands in a thin walled copper sleeve that is crimped onto the conductor Sleeve ensures no stray conductor strands or breaks from screw Crimp holds on sleeve until housing screw makes connection Crimp with one of our HNKE range of crimp tools Halogen free
Standard Pack Size	500
UNSPSC Class	39121400
UOM	EA
Vendor Product	BLP075/500
Collar Inside Diameter	3.8 mm
Contact Material	Copper
Conductor Size	0.75 mm
Finish	Tin Plated
Insulation Colour	Blue
Crimping Die	HNKE12/HNKE3/HNKE6/HNKE5/HNKE9/HNKE10/HNKE11
Number of Conductors	1
Insulation Material	Nylon
Overall Length	14 mm
Pin Length	8 mm
Pack Size	500 Pack
Pin Diameter	1.5 mm
Temperature	-55 to 105 deg C
Sleeve Material	Copper
