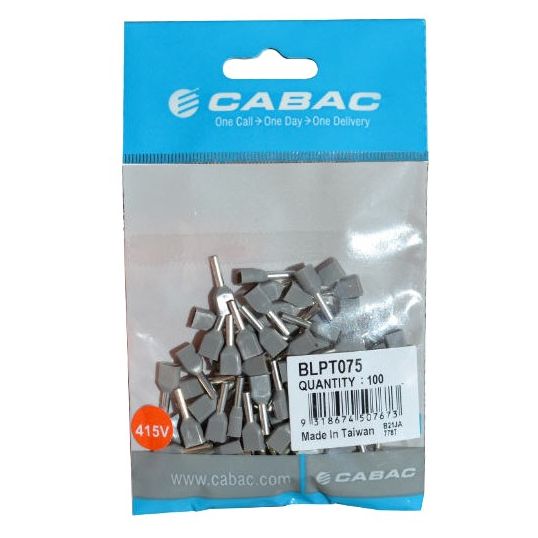

Cabac Bootlace Ferrule Insulated Twin Wire 2x0.75mm 1.8x8mm Pin Grey 15mm OAL

Description

Twin Wire Bootlace Ferrule Insulated, 0.75 mm, 2 Conductors, 8 mm Pin Length, 1.8 mm Pin Diameter, 5 mm Collar Inside Diameter, HNKE6, 15 mm Overall Length, Copper Sleeve, Grey Insulation, Copper Contact, Tin Plated, 100 Pack

Key Specifications

Barcode (EAN-13)	9318674507673
SKU	CAABLPT075
Brand	Cabac
Range Name	Pre-Insulated Terminals

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Specifically designed to terminate two wires in the same terminal A quick and easy way to terminate two wires Developed for use in smaller switches and devices Halogen free
Standard Pack Size	100
UNSPSC Class	39121400
UOM	EA
Vendor Product	BLPT075
Collar Inside Diameter	5 mm
Contact Material	Copper
Conductor Size	0.75 mm
Finish	Tin Plated
Insulation Colour	Grey
Crimping Die	HNKE6
Number of Conductors	2
Overall Length	15 mm
Pin Length	8 mm
Pack Size	100 Pack
Pin Diameter	1.8 mm
Sleeve Material	Copper
